PM Components

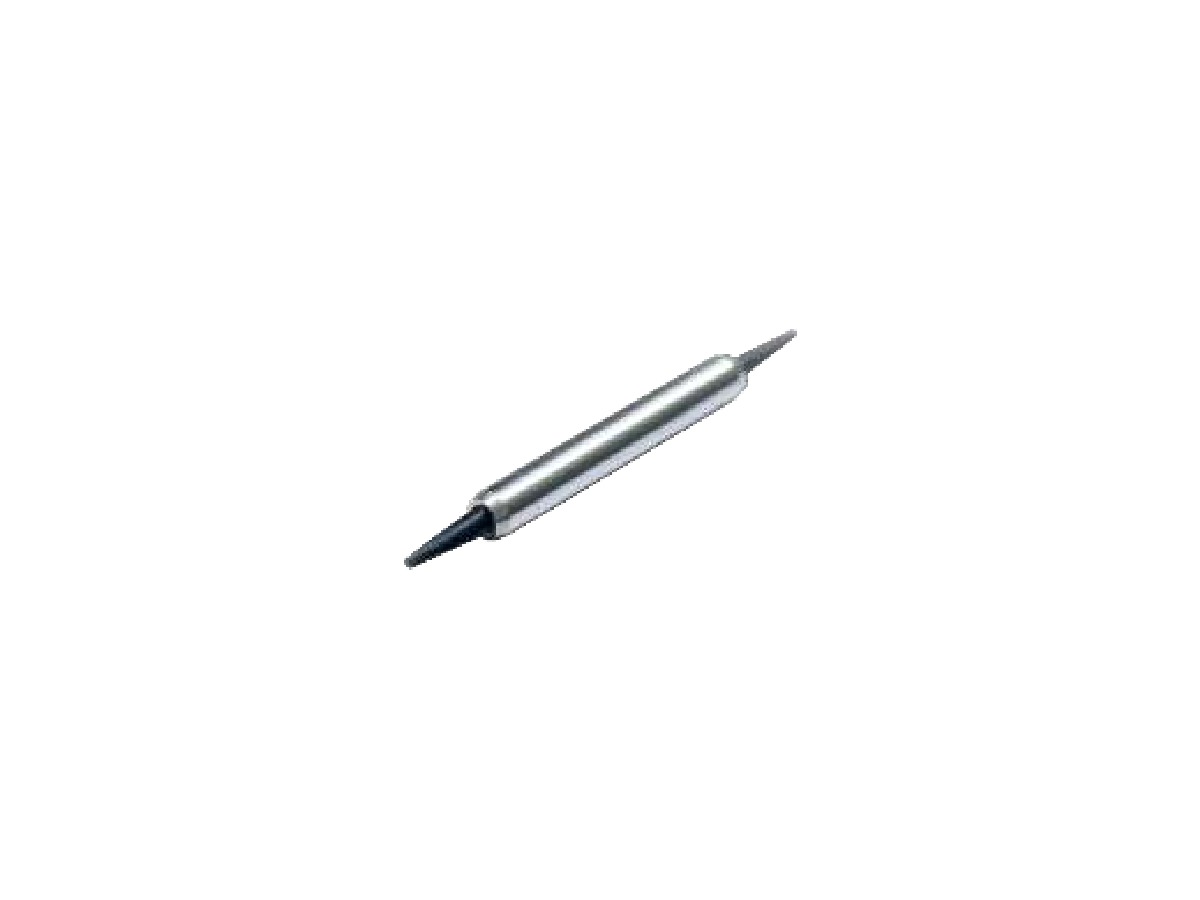

Polarization Maintaining Bandpass Filter
Polarization Maintaining Bandpass Filter with low loss, high efficiency, precise filtering, zero crosstalk.
Power1
Wavelength1540 ~ 1560
Fiberfiber
PackageApplication-specific package
Spec, sample and MOQ review
Export documentation
NDA available on request
Product overview
Designed around the optical requirement.
Polarization Maintaining Bandpass Filter with low loss, high efficiency, precise filtering, zero crosstalk.
Final performance is confirmed against the selected model, fiber, package and application conditions. Please include wavelength, power, polarization, fiber type, package and expected quantity when requesting a quote.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
Low loss, high efficiency
Precise filtering, zero crosstalk
High extinction ratio, stable performance
High damage threshold
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Center Wavelength
nm
1540 ~ 1560
Min. Pass Bandwidth @ -0.5 dB
nm
1
Max. Insertion Loss
dB
0.6
Min. Isolation
dB
22
Min. Return Loss
dB
50
Min. Extinction Ratio
dB
20
Max. Optical Power
W
1
Max. Peak Power for ns pulse
kW
10
Max. Tensile Load
N
5
Fiber Type
PM 1550
fiber
Operating Temperature
℃
-40 to +70
Storage Temperature
℃
-40 to +85
RFQ
Request this product
Send your target specifications, quantity, application and delivery country. Our team will respond with a suitable configuration.
