Ultrafast & SESAM

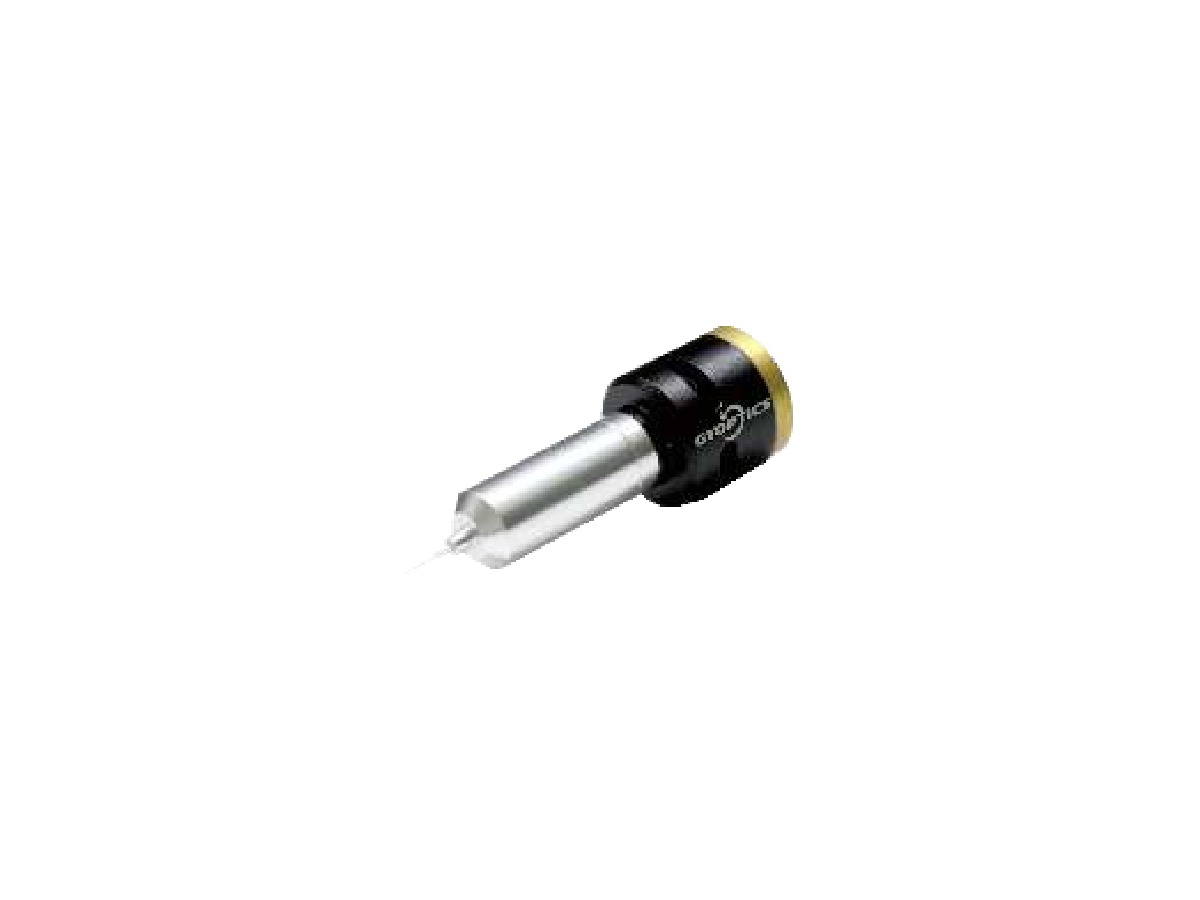

SESAM
SESAM with manual point switching, fiber type/beam diameter optional.
Power300
Wavelength1030 / 1040 / 1064 / 1550
FiberPM 980 / PM 980 / PM 980 / PM 1550
PackageApplication-specific package
Spec, sample and MOQ review
Export documentation
NDA available on request
Used in
Ultrafast Laser
Product overview
Designed around the optical requirement.
SESAM with manual point switching, fiber type/beam diameter optional.
Final performance is confirmed against the selected model, fiber, package and application conditions. Please include wavelength, power, polarization, fiber type, package and expected quantity when requesting a quote.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
Manual point switching
Fiber type/Beam Diameter optional
Reflection/transmission optional
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Center Wavelength
nm
1030 / 1040 / 1064 / 1550
Operating Wavelength Range
nm
λc ± 15
Beam Spot Size on SESAM Shiny Surface
µm
~12 or Specify
Max. Excess Loss
dB
1.0
Min. Extinction Ratio
dB
20
Fiber Type
PM 980 / PM 980 / PM 980 / PM 1550
Max. Optical Power
mW
300
Max. Peak Power (ns pulse)
kW
10
Max. Tensile Load
N
5
Operating Temperature
C
-5 to +70
Storage Temperature
C
-40 to +85
Package dimensions
Mechanical outline and mounting reference.
Dimensions shown are extracted from the manufacturer drawing. Final production drawings are confirmed with the quotation.
Unitsmm
Dimension callouts shown3 / 47 / 0.3 / 6 / 5.5 / 0 mm
Drawing noteDimensions follow the manufacturer drawing. Final production drawing is confirmed per order.
Ordering information
Configure the part number for your requirement.
Use the option codes below when requesting a quotation or confirming a production order.
Wavelength03 -1030 nm,04 -1040 nm,06 -1064 nm, 55 -1550 nm, SS -Specify
Pump Wavelength97-976 nm,98-980 nm,SS-Specify
Connector Type1 - FC/UPC,2 -FC/APC,N-None,S-Specify
Jacket TypeB-Barefiber,L-900μmloose tube,S-Specify
Fiber Typefor Pump1-HI 1060,2-PM 980
Fiber Length1 - 1.0 m, S - Specify
Beam Spotsize12-12μm,18-18μm,20-20μm,SS-Specify
RFQ
Request this product
Send your target specifications, quantity, application and delivery country. Our team will respond with a suitable configuration.
