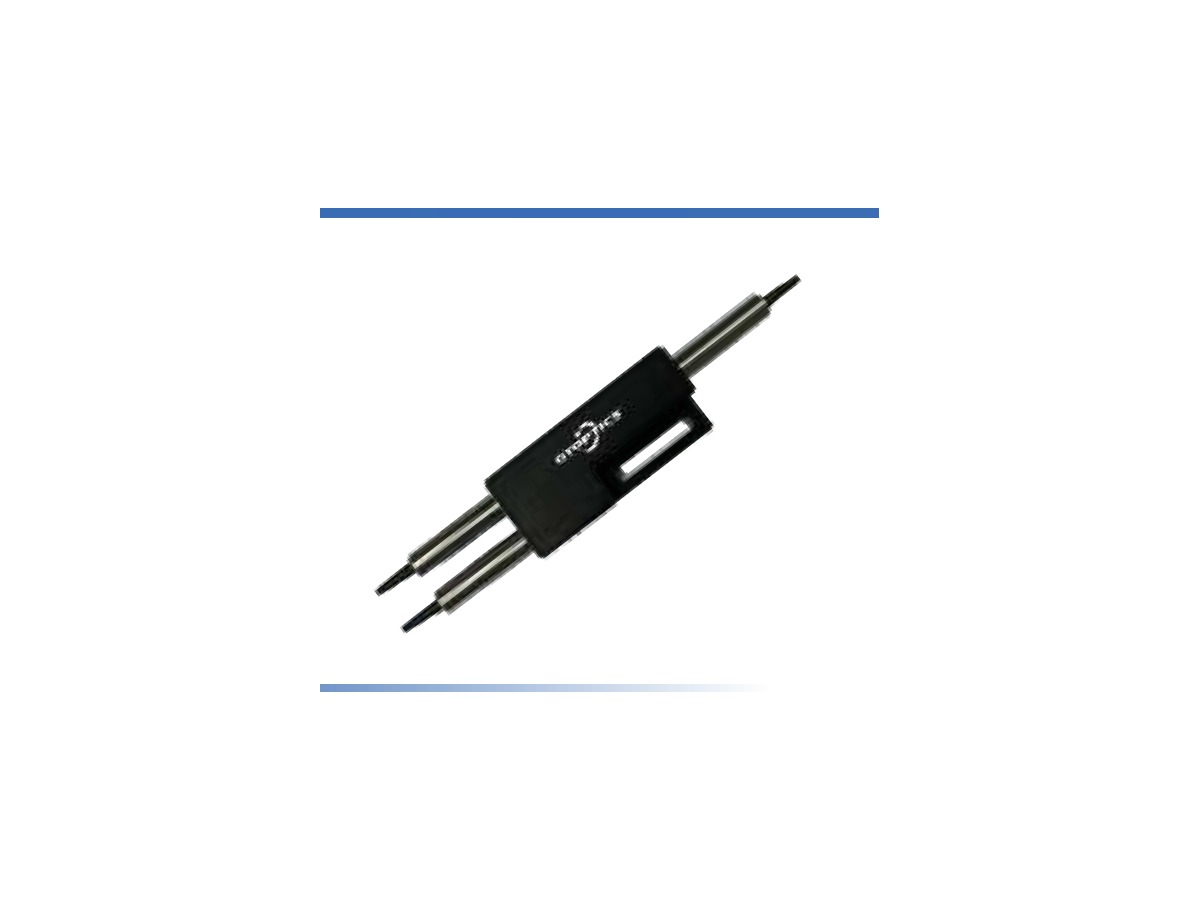

Polarization Maintaining Fiber Optic Circulator – 1550 nm
Polarization Maintaining Fiber Optic Circulator – 1550 nm with low insertionloss, high isolation degree.
Power5
Wavelength1550
Fiberfiber or Specify
PackageApplication-specific package
Spec, sample and MOQ review
Export documentation
NDA available on request
Product overview
Designed around the optical requirement.
Polarization Maintaining Fiber Optic Circulator – 1550 nm with low insertionloss, high isolation degree.
Final performance is confirmed against the selected model, fiber, package and application conditions. Please include wavelength, power, polarization, fiber type, package and expected quantity when requesting a quote.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
Low insertionloss
High isolation degree
High environmental stability
Broadband Support
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Center Wavelength
nm
1550
Operating Wavelength Range
nm
λc ± 10
Typ. Insertion Loss, λc, 23 ℃
dB
0.8
Max. Insertion Loss
dB
1
Min. Isolation, P 2-P 1, 23 ℃
dB
45
Min. Isolation, P 2-P 1, -40 ℃ to +60 ℃
dB
35
Min. Extinction Ratio
dB
20
Min. Crosstalk
dB
55
Min. Return Loss
dB
70
Max. Optical Power
W
5
Max. Peak Power for ns pulse
kW
10
Max. Tensile Load
N
5
Max. M 2 Degradation
＜10%
Fiber Type
Nufern PLMA-GDF-25/300
fiber or Specify
Operating Temperature
℃
-40 to +60
Storage Temperature
℃
-40 to +85
RFQ
Request this product
Send your target specifications, quantity, application and delivery country. Our team will respond with a suitable configuration.
