Fiber Collimators

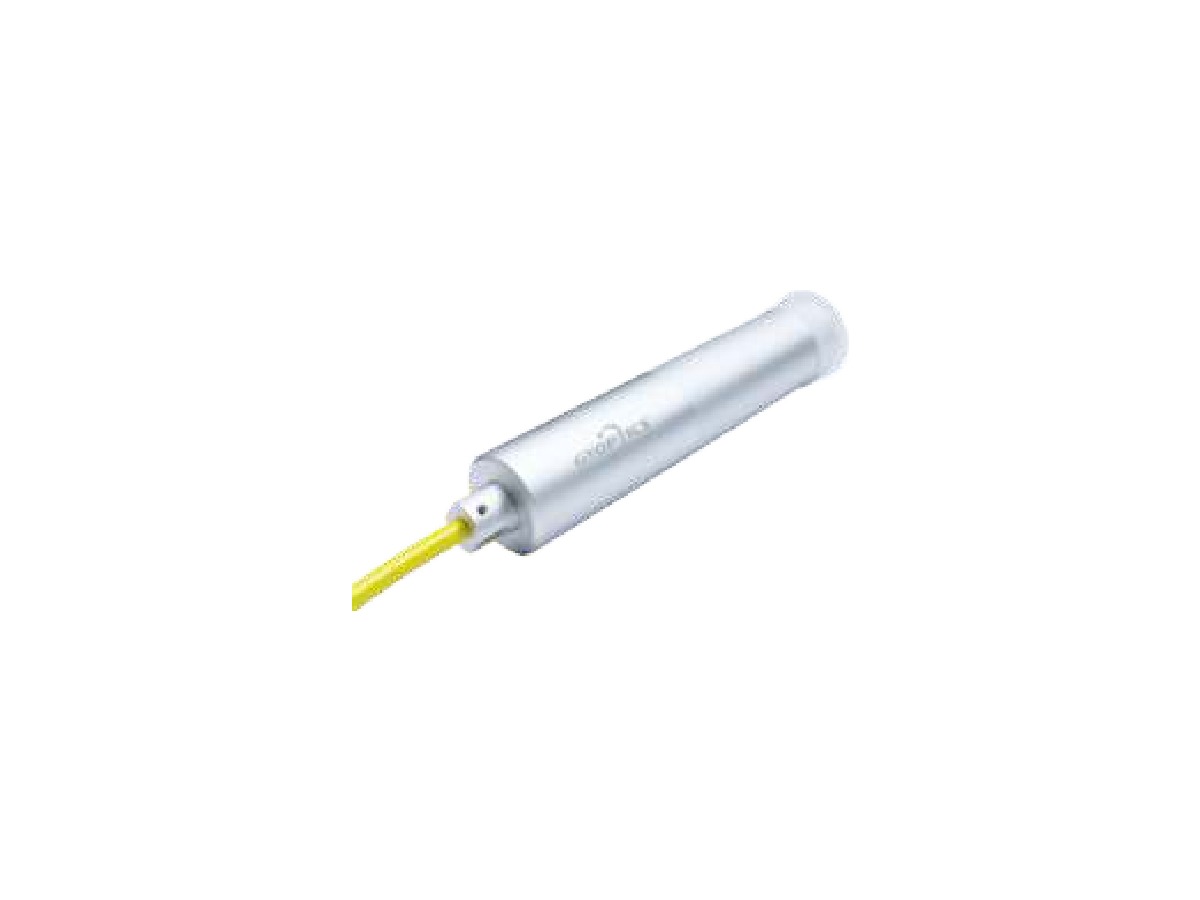

1000W High Power Fiber Collimator
1000W High Power Fiber Collimator with 3-11 mm beam diameter optional, 100-500 w power optional.
Power1000 or Specify
Wavelength1064
FiberLMA-GDF-10/130-M or LMA-GDF-14/250-HP-M
PackageApplication-specific package
Spec, sample and MOQ review
Export documentation
NDA available on request
Used in
Industrial Laser
Product overview
Designed around the optical requirement.
1000W High Power Fiber Collimator with 3-11 mm beam diameter optional, 100-500 w power optional.
Final performance is confirmed against the selected model, fiber, package and application conditions. Please include wavelength, power, polarization, fiber type, package and expected quantity when requesting a quote.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
3-11 mm Beam Diameter optional
100-500 W power optional
Good beam quality, stable and reliable
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Center Wavelength
nm
1064
Operating Wavelength Range
nm
λc ± 20
Min. Ellipticity
%
92
Beam Pointing Error
deg
< 1.0
Beam Divergence (Far field)
mrad
< 0.5
Min. Return Loss
dB
50
Nominal Output Beam Diameter (1/e2)
mm
7.5 ± 0.5
Max. Average Optical Power (CW)
W
1000 or Specify
Max. Tensile Load
N
5
Fiber Type (input port)
LMA-GDF-10/130-M or LMA-GDF-14/250-HP-M
Operating Temperature
C
5 to +40
Storage Temperature
C
-40 to +85
RFQ
Request this product
Send your target specifications, quantity, application and delivery country. Our team will respond with a suitable configuration.
