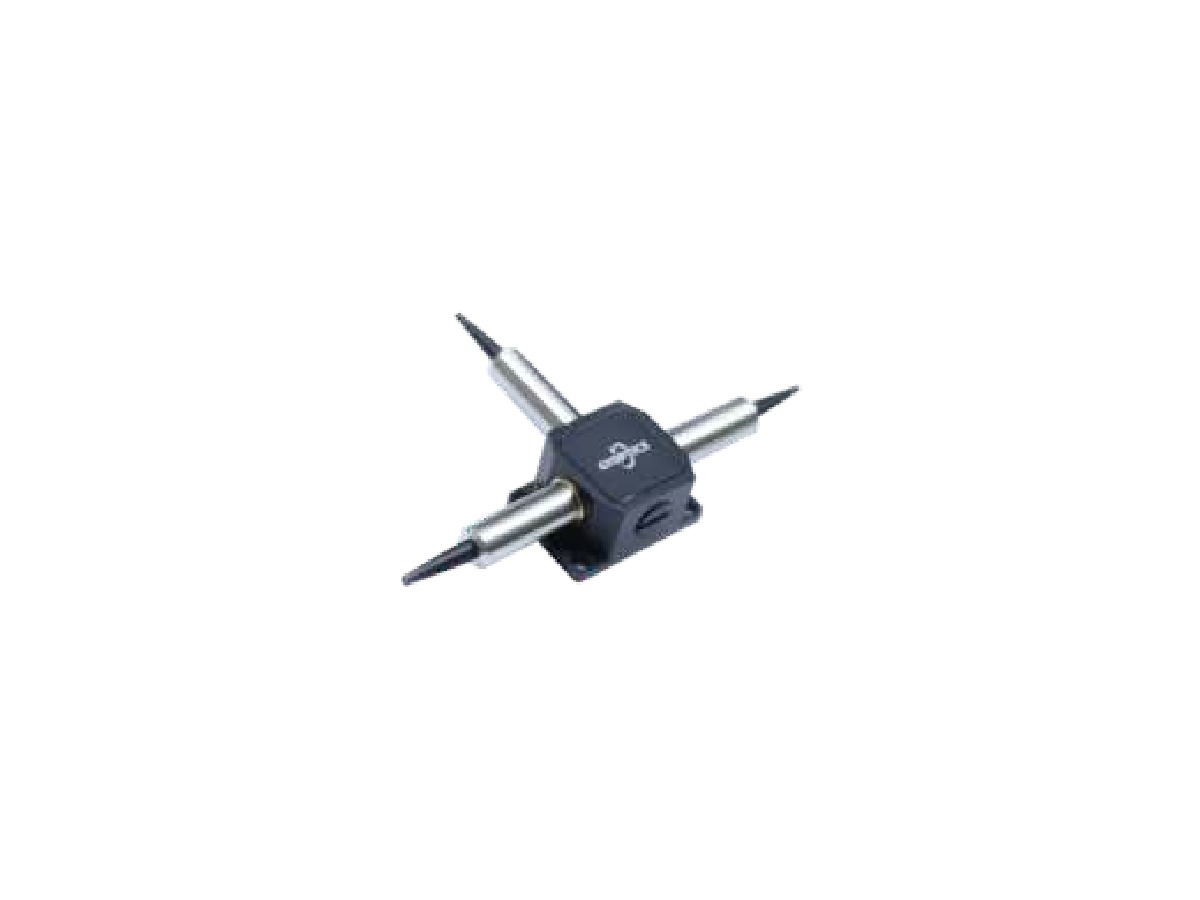

Polarization Maintaining Tap Coupler – 780/850 nm
Polarization Maintaining Tap Coupler – 780/850 nm with high extinction ratio, low deterioration.
Power300
Wavelength780 or 850
FiberPM 780-HP fiber or Specify
PackageApplication-specific package
Spec, sample and MOQ review
Export documentation
NDA available on request
Product overview
Designed around the optical requirement.
Polarization Maintaining Tap Coupler – 780/850 nm with high extinction ratio, low deterioration.
Final performance is confirmed against the selected model, fiber, package and application conditions. Please include wavelength, power, polarization, fiber type, package and expected quantity when requesting a quote.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
High extinction ratio
Low deterioration
High accuracy of splitting ratio
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Center Wavelength (λc)
nm
780 or 850
Operating Wavelength Range
nm
λc ± 10
Max. Excess Loss, 23 ℃
dB
1.2
Tap Ratio, 23 ℃ (Tap IL = -10*log(Tap Ratio)+ E.L)
%
1 ± 0.5, 5 ± 1.5, 10 ± 2, 50 or Specify
Min. Extinction Ratio
dB
18
Min. Return Loss
dB
50
Max. Optical Power
mW
300
Max. Tensile Load
N
5
Fiber Type
PM 780-HP fiber or Specify
Operating Temperature
℃
0 to +70
Storage Temperature
℃
-40 to +85
Package dimensions
Mechanical outline and mounting reference.
Dimensions shown are extracted from the manufacturer drawing. Final production drawings are confirmed with the quotation.
Unitsmm
Dimension callouts shown12 / 24 / 10 / 20 / 17 / 4 / 2.2 mm
Drawing noteDimensions follow the manufacturer drawing. Final production drawing is confirmed per order.
Ordering information
Configure the part number for your requirement.
Use the option codes below when requesting a quotation or confirming a production order.
Wavelength78-780 nm,85 -850 nm, SS -Specify
Configuration1-1×2
Tap Ratio01 - 1/99,05 -5/95, 10 - 10/90, 50 - 50/50, SS - Specify
Connector Type1 -FC/UPC, 2 -FC/APC,N -None,S - Specify
Jacket TypeB-Bare fiber,L-900μmloose tube,S-Specify
Fiber Typefor Tap1-HI 780,2-PM 780-HP,S-Specify
Fiber Length1 - 1.0 m,S -Specify
