Optical Amplifiers

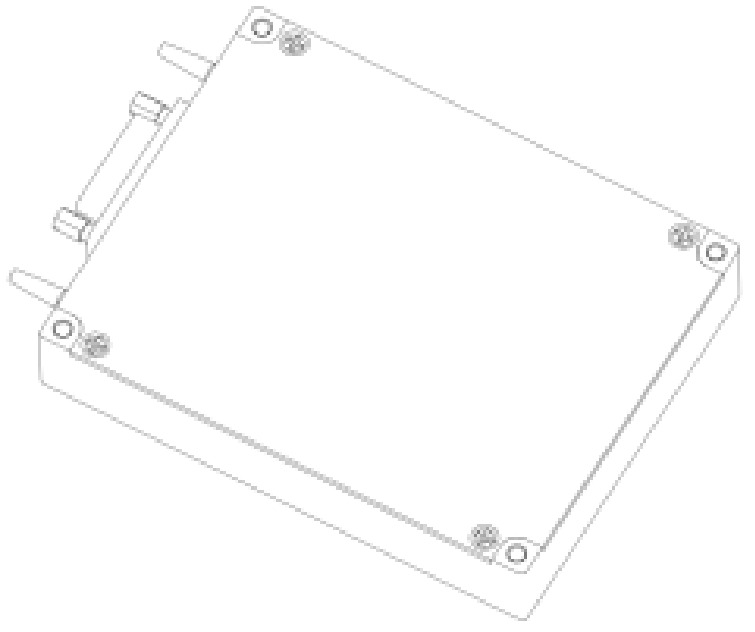

Miniaturized EDFA Module
Compact, configurable EDFA module for C-, L- or L++-band amplification, with continuous-wave or pulsed operation options.
WavelengthC / L / L++ band, configuration dependent
FiberSMF-28e input; PM or non-PM configuration
PackageCompact module; custom configuration
Spec, sample and MOQ review
Export documentation
NDA available on request
Product overview
Designed around the optical requirement.
Emgo Technology's compact EDFA module is described as a configurable platform for C-, L- and L++-band amplification, with continuous-wave or pulsed operation and polarization-maintaining or non-polarization-maintaining options. The brochure lists selectable optical input and output ranges; ask us to confirm the exact operating point, gain, noise figure and interface for the configuration you need.
Manufacturer: Emgo Technology. Confirm the exact model configuration and system compatibility with the manufacturer before ordering.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
Compact, configurable module
Continuous-wave or pulsed operation
PM and non-PM options
Control and communications module shown in the supplied system diagram
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Wavelength configuration
C / L / L++ band, configuration dependent
Input optical power range
dBm
−30 to −10
Output optical power range
dBm
+20 to +40
No-light alarm threshold
dBm
−60
Input fiber
SMF-28e
Input/output fiber connectors
FC/APC; 0.8 m pigtail listed
Output power setting accuracy
dB
0.1
Output power stability
%
1 maximum
Gain consistency
dB
1.2 maximum
Input/output isolation
dB
45 minimum
Return loss
dB
45 minimum
Operating mode
Continuous wave or pulsed; ACC/APC
Polarization
PM or non-PM
Supply voltage
V
12
RFQ
Request this product
Send your target specifications, quantity, application and delivery country. Our team will respond with a suitable configuration.
