Isolators

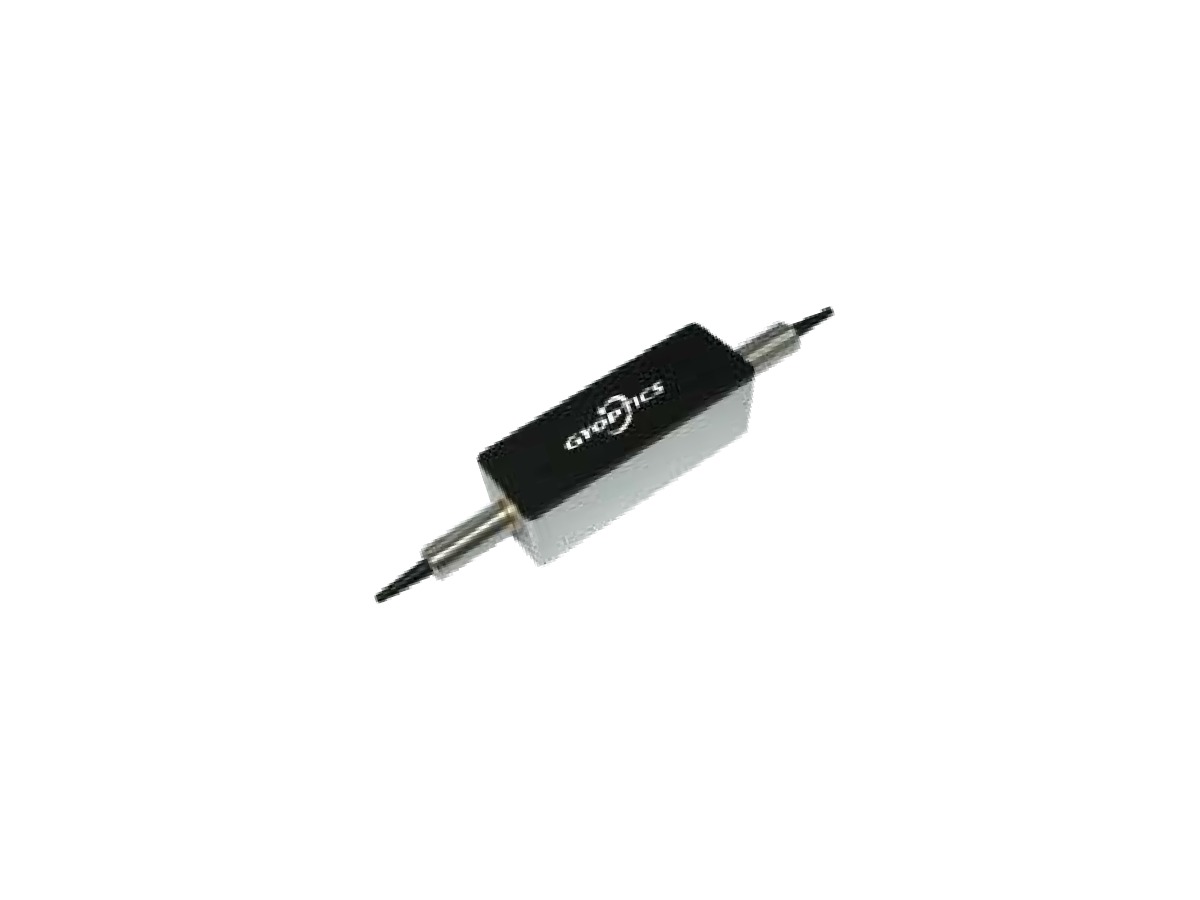

High Power Polarization Independent Isolator
High Power Polarization Independent Isolator with low insertionloss, high isolation degree.
Power500
Wavelength461 / 488 / 520 / 532
Fiber460-HP fiber
PackageApplication-specific package
Spec, sample and MOQ review
Export documentation
NDA available on request
Product overview
Designed around the optical requirement.
High Power Polarization Independent Isolator with low insertionloss, high isolation degree.
Final performance is confirmed against the selected model, fiber, package and application conditions. Please include wavelength, power, polarization, fiber type, package and expected quantity when requesting a quote.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
Low insertionloss
High isolation degree
High environmental stability
Broadband support
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Center Wavelength
nm
461 / 488 / 520 / 532
Max. Insertion Loss
dB
1.2 / 1.5 / 1.0 / 1.0
Typ. Peak Isolation
dB
25 / 23 / 25 / 28
Min. Isolation
dB
22 / 20 / 22 / 25
Min. Return Loss
dB
50
Max. Polarization Dependent Loss
dB
0.2
Max. Average Optical Power
mW
500
Max. Tensile Load
N
5
Fiber Type
460-HP fiber
Operating Temperature
C
10 to +50
Storage Temperature
C
0 to +60
RFQ
Request this product
Send your target specifications, quantity, application and delivery country. Our team will respond with a suitable configuration.
