Isolators

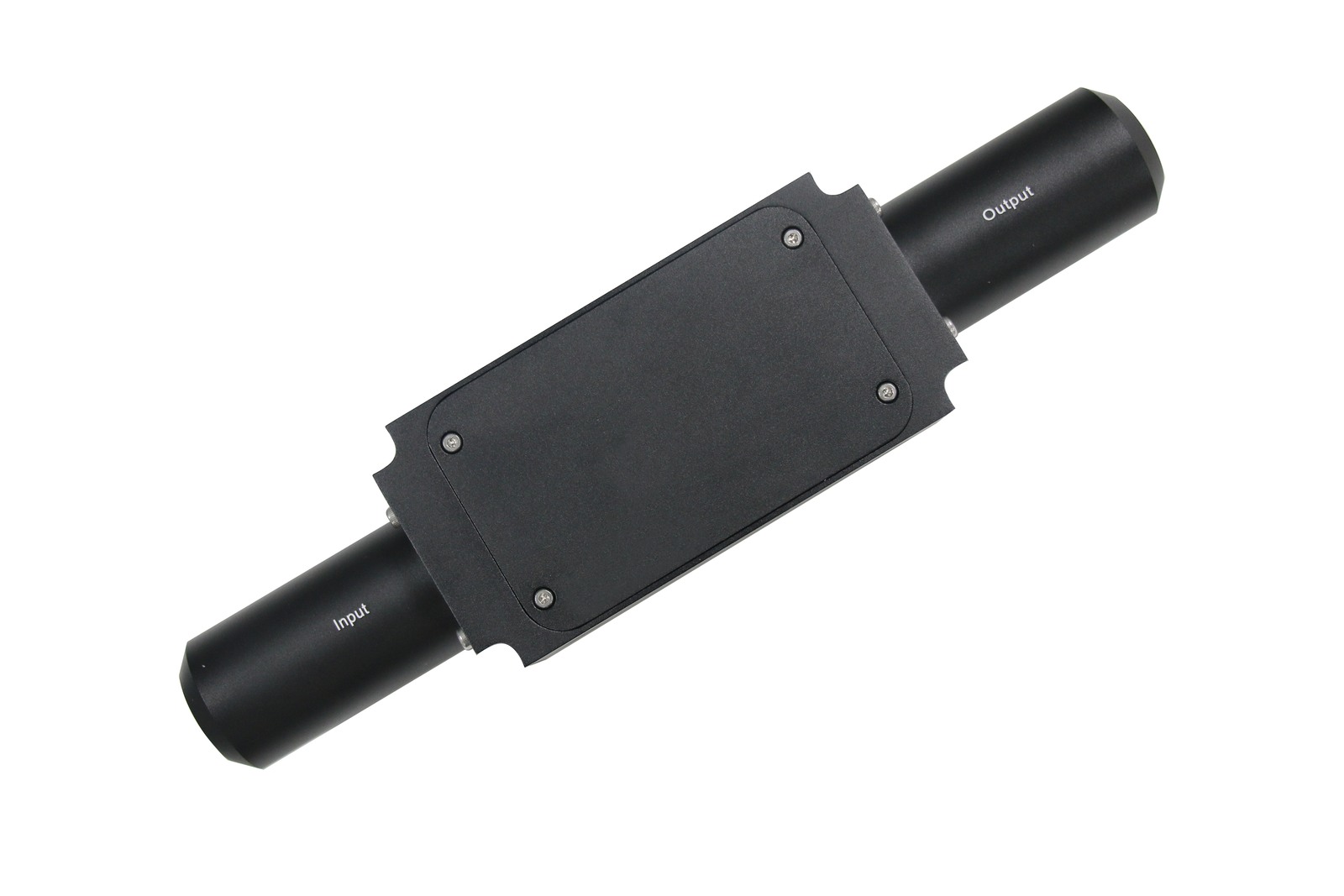

300W High Power Isolator
High-power in-line isolator designed to protect laser sources from damaging back reflections.
ModelHPI-1064-300W
Power300 W
Wavelength1064 nm
FiberHigh-power fiber, specified by application
PackageThermally managed metal housing
Spec, sample and MOQ review
Export documentation
NDA available on request
Product overview
Designed around the optical requirement.
High-power in-line isolator designed to protect laser sources from damaging back reflections.
Please share your wavelength, power, polarization, fiber type, package and expected quantity so the configuration can be reviewed against your application.
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Center Wavelength (λc)
nm
1064
Operating Wavelength Range
nm
λc± 10
Typ. Peak Isolation
dB
32
Min. Isolation, λc, 23 °C
dB
28
Typ. Insertion Loss, 23 °C
dB
0.6
Max. Insertion Loss, 23 °C @ 1064 nm
dB
0.7
Max. Insertion Loss, 23 °C @ 650 nm
dB
8
Max. Polarization Dependent Loss
dB
0.2
Min. Return Loss (In / Out)
dB
50
Max. Average Optical Power
W
300
Max. Peak Power for ns pulse
kW
50
Fiber Type
Specified by ordering info
Operating Temperature
℃
10 to+50
Storage Temperature
℃
0 to +60
Package dimensions
Mechanical outline and mounting reference.
Dimensions shown are extracted from the manufacturer drawing. Final production drawings are confirmed with the quotation.
Unitsmm
General toleranceX.X ± 1 mm
Dimension callouts shown112 / 50 / 70 / 60 / 4 / 5 / 1 mm
Drawing noteDimensions follow the manufacturer drawing. Final production drawing is confirmed per order.
Ordering information
Configure the part number for your requirement.
Use the option codes below when requesting a quotation or confirming a production order.
Wavelength06-1064 nm,SS-Specify
Handing Power300-300 W,S-Specify
Fiber Length1 - 1.0 m, 2-2.0 m,S -Specify
Fiber Typefor In1 -LMA-GDF-25/250 fiber,S-Specify
Fiber Type for Out1 -LMA-GDF-30/250 fiber,S-Specify
RFQ
Request this product
Send your target specifications, quantity, application and delivery country. Our team will respond with a suitable configuration.
