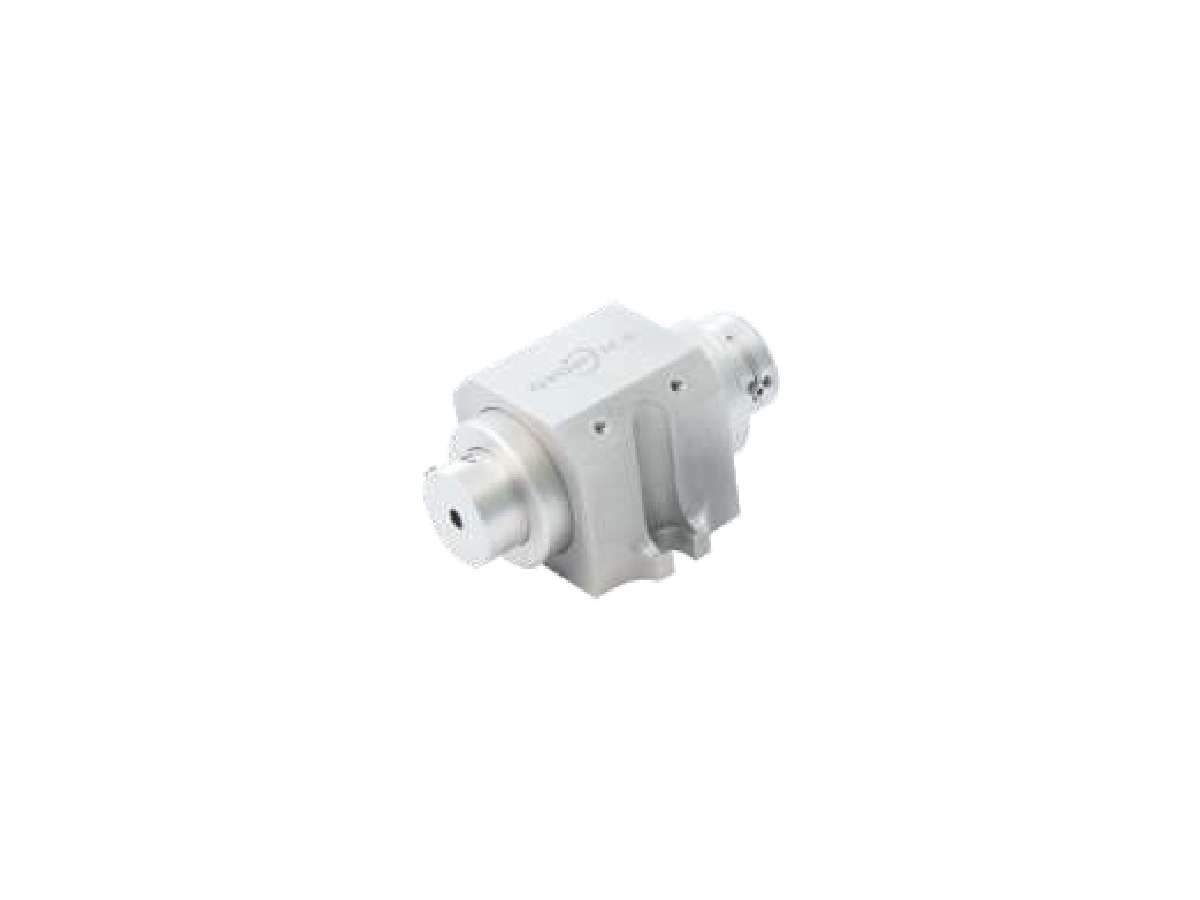

High Power Polarization Dependent Free Space Isolator – 1030 nm
High Power Polarization Dependent Free Space Isolator – 1030 nm with wavelength 780-1100 nm optional, optical aperture 3/5/8/10 mm optional.
Power30 to 100 options; shown 100
Wavelength780 to 1100 selectable, typical 1030
FiberSpecified by ordering information
PackageApplication-specific package
Spec, sample and MOQ review
Export documentation
NDA available on request
Product overview
Designed around the optical requirement.
High Power Polarization Dependent Free Space Isolator – 1030 nm with wavelength 780-1100 nm optional, optical aperture 3/5/8/10 mm optional.
Final performance is confirmed against the selected model, fiber, package and application conditions. Please include wavelength, power, polarization, fiber type, package and expected quantity when requesting a quote.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
Wavelength 780-1100 nm optional
Optical aperture 3/5/8/10 mm optional
Power 30-100 W optional
High isolation degree
Compact volume
High damage threshold
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Center Wavelength
nm
780 to 1100 selectable, typical 1030
Peak Isolation
dB
35
Min. Isolation
dB
30
Min. Extinction Ratio
dB
25
Typ. Insertion Loss
dB
0.3
Max. Insertion Loss
dB
0.4
Polarization Rotation Angle
deg
45 ± 2
Clear Aperture
mm
3 / 5 / 8 / 10 options; shown 3 / 5
Max. Beam Diameter
mm
2.7 / 4.7
Max. Average Optical Power
W
30 to 100 options; shown 100
Max. Peak Power Density
J/cm2
5
Operating Temperature
C
10 to +50
Storage Temperature
C
0 to +60
RFQ
Request this product
Send your target specifications, quantity, application and delivery country. Our team will respond with a suitable configuration.
