Wind LiDAR

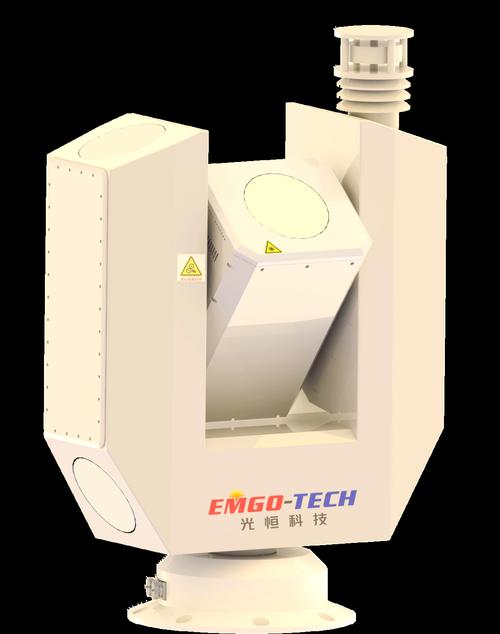

Vertical Wind LiDAR – 400 m
Compact eye-safe vertical LiDAR measuring wind from 30-400 m for take-off and landing sites and route monitoring.
PackageApplication-specific
Spec, sample and MOQ review
Export documentation
NDA available on request
Product overview
Designed around the optical requirement.
Compact eye-safe vertical LiDAR measuring wind from 30-400 m for take-off and landing sites and route monitoring.
Manufacturer: Emgo Technology. Final specifications, interfaces, packaging and environmental ratings are confirmed against the selected model and application.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
Eye-safe 1.5 um laser source
30-400 m vertical measurement
IP67 compact enclosure
Take-off and landing site monitoring
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Laser Wavelength
1550 nm (eye-safe)
Detection Height Range
m
30-400
Spatial Resolution
Any 30 heights within the range, software configurable
Data Refresh Time
1s-10 min (software configurable)
Line-of-Sight Wind Speed Range
m/s
0-70
Wind Speed Measurement Accuracy
m/s
≤0.1
Wind Direction Measurement Accuracy
°
<1
Data Products
Second-level and time-averaged wind speed and direction, vertical speed, maximum and minimum horizontal wind speed, wind speed mean square error (turbulence intensity), wind shear index, signal-to-noise ratio data, position time, radar status data, ground atmospheric temperature, humidity, air pressure data, etc.
IP Rating
IP67
Dimensions
mm
667×562×389
Weight
kg
≤60
Power Consumption
≤60 W (≤200 W when heating)
