Wind LiDAR

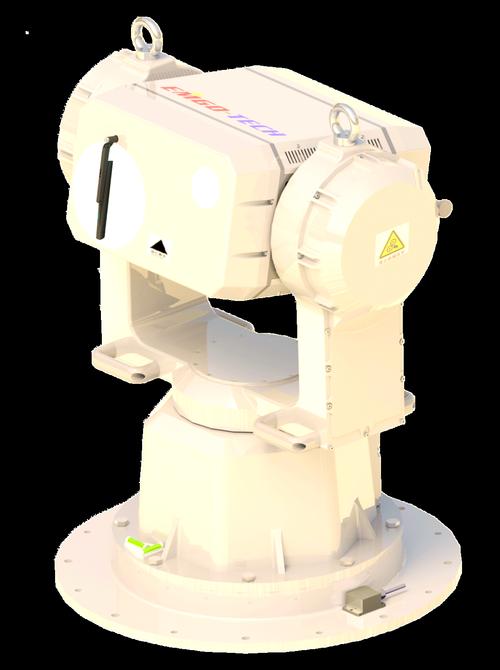

Vertical Wind LiDAR – 1000 m
Lightweight eye-safe vertical LiDAR measuring wind from 30-1000 m for rapid low-altitude deployment.
PackageApplication-specific
Spec, sample and MOQ review
Export documentation
NDA available on request
Product overview
Designed around the optical requirement.
Lightweight eye-safe vertical LiDAR measuring wind from 30-1000 m for rapid low-altitude deployment.
Manufacturer: Emgo Technology. Final specifications, interfaces, packaging and environmental ratings are confirmed against the selected model and application.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
Eye-safe 1.5 um laser source
30-1000 m vertical measurement
IP67 lightweight enclosure
Rapid deployment for low-altitude wind monitoring
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Laser Wavelength
1550 nm (eye-safe)
Detection Height Range
m
30-1000
Spatial Resolution
Any 30 heights within the range of 30-1000 m, software configurable
Data Refresh Time
1s-10 min (software configurable)
Line-of-Sight Wind Speed Range
m/s
0-70
Wind Speed Measurement Accuracy
m/s
≤0.1
Wind Direction Measurement Accuracy
°
<1
Data Products
Second-level and time-averaged wind speed and direction, vertical speed, maximum and minimum horizontal wind speed, wind speed mean square error (turbulence intensity), wind shear index, signal-to-noise ratio data, position time, radar status data, ground atmospheric temperature, humidity, air pressure data, etc.
IP Rating
IP67
Weight
kg
≤30
Power Consumption
W
≤150
