Pump Combiners

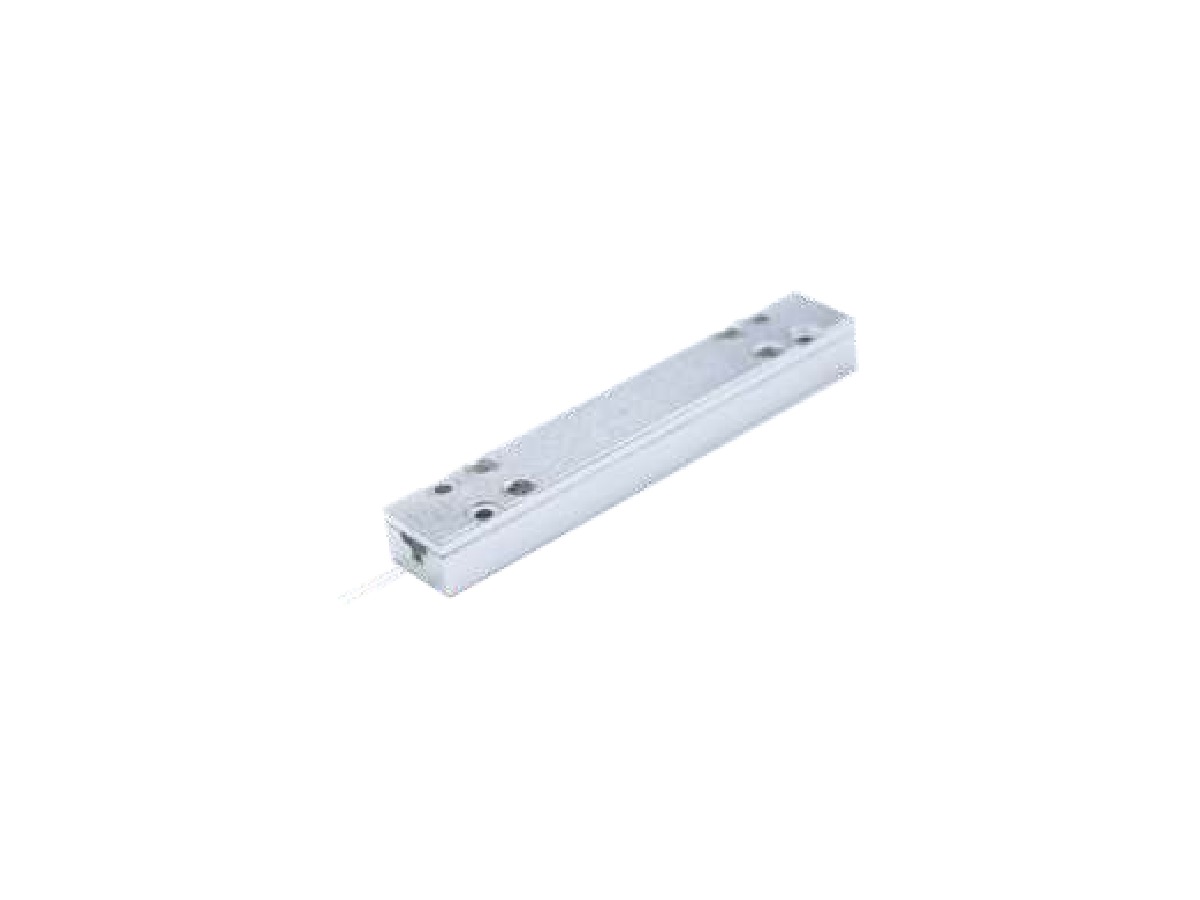

(6+1)x1 Pump Combiner (MPC)
(6+1)x1 Pump Combiner (MPC) with high pump efficiency, stable and reliable performance.
Power3 × 20
Wavelength940
FiberIXF-2CF-PAS-PM-12-130-0.17-RAD
PackageApplication-specific package
Spec, sample and MOQ review
Export documentation
NDA available on request
Used in
Aerospace & Space
Product overview
Designed around the optical requirement.
(6+1)x1 Pump Combiner (MPC) with high pump efficiency, stable and reliable performance.
Final performance is confirmed against the selected model, fiber, package and application conditions. Please include wavelength, power, polarization, fiber type, package and expected quantity when requesting a quote.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
High pump efficiency
Stable and reliable performance
Provide customized configurations
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Signal Direction
Forward or Backward
Pump Wavelength
nm
940
Signal Wavelength
nm
1550
Max. Insertion Loss (Signal Input to Output)
dB
0.8
Min. Pump Efficiency
%
93
Max. Pump Power Handling
W
3 × 20
Min. PER
dB
18
Signal Input Fiber Type
IXF-2CF-PAS-PM-12-130-0.17-RAD
Output Fiber Type
IXF-2CF-PAS-PM-12-130-0.17-RAD
Pump Fiber
MM-105/125 NA 0.22
Operating Temperature
C
0 to +65
Storage Temperature
C
-40 to +85
RFQ
Request this product
Send your target specifications, quantity, application and delivery country. Our team will respond with a suitable configuration.
