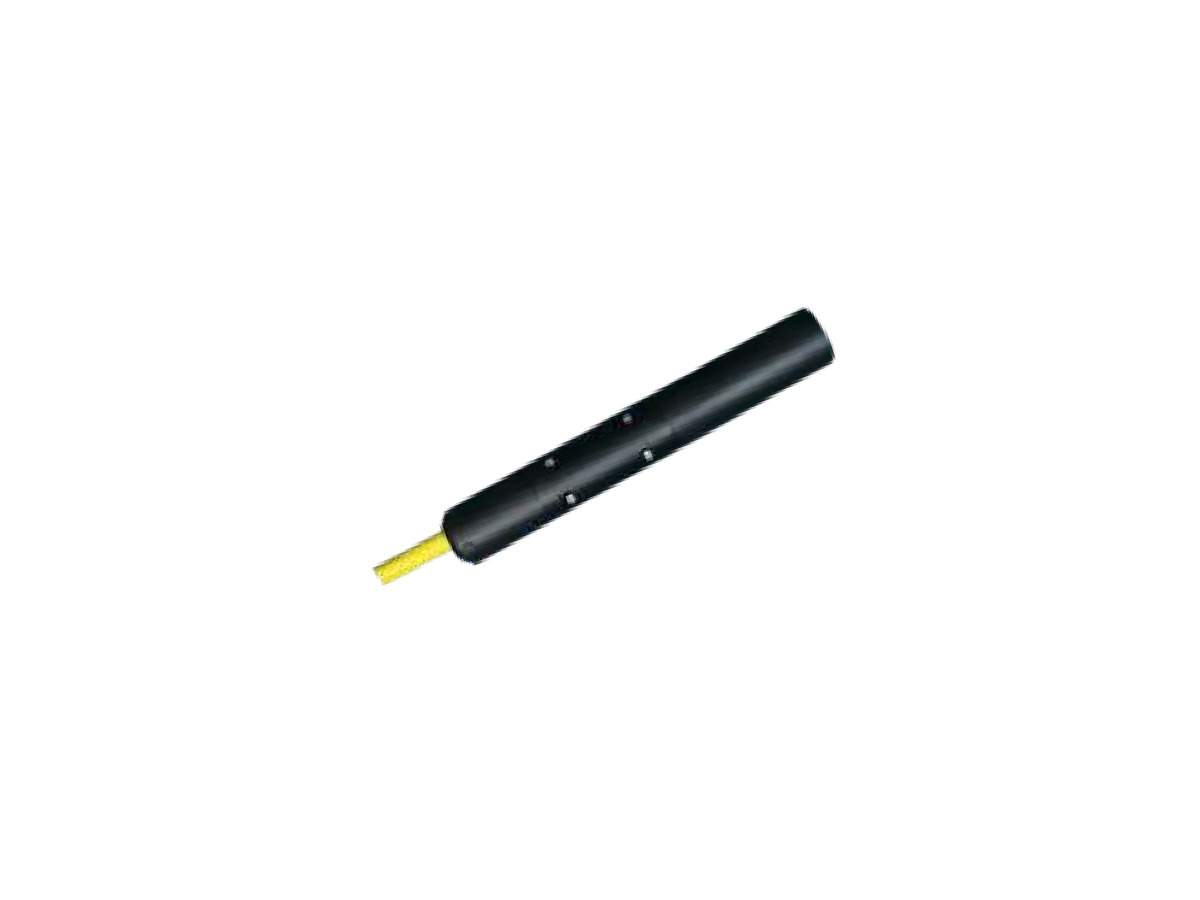

60W Fiber to Free Space Isolator
60W Fiber to Free Space Isolator with low insertion loss, high isolation degree.
Power60
Wavelength1064
Fiberby ordering info
PackageApplication-specific package
Spec, sample and MOQ review
Export documentation
NDA available on request
Product overview
Designed around the optical requirement.
60W Fiber to Free Space Isolator with low insertion loss, high isolation degree.
Final performance is confirmed against the selected model, fiber, package and application conditions. Please include wavelength, power, polarization, fiber type, package and expected quantity when requesting a quote.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
Low insertion loss
High isolation degree
High environmental stability
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Center Wavelength (λc)
nm
1064
Max. Insertion Loss at λc, 23℃
dB
0.4
Typ. Peak Isolation
dB
35
Min. Isolation at 30℃
dB
28
Min. Isolation at all temperature
dB
20
Min. Return Loss
dB
50
Nominal Output Beam Diameter (1/e²)
mm
6.5 ± 0.5
Beam Circularity
%
> 90
M 2 Degradation
%
< 10
Max. Average Optical Power
W
60
Max.Pulse Energy
mJ
2
Reverse Power Handling
W 10 W 3 W
Continuous (3 min max)
Fiber Type (input port)
Specified
by ordering info
Operating Temperature
℃
10 to +50
Storage Temperature
℃
0 to +60
