Isolators

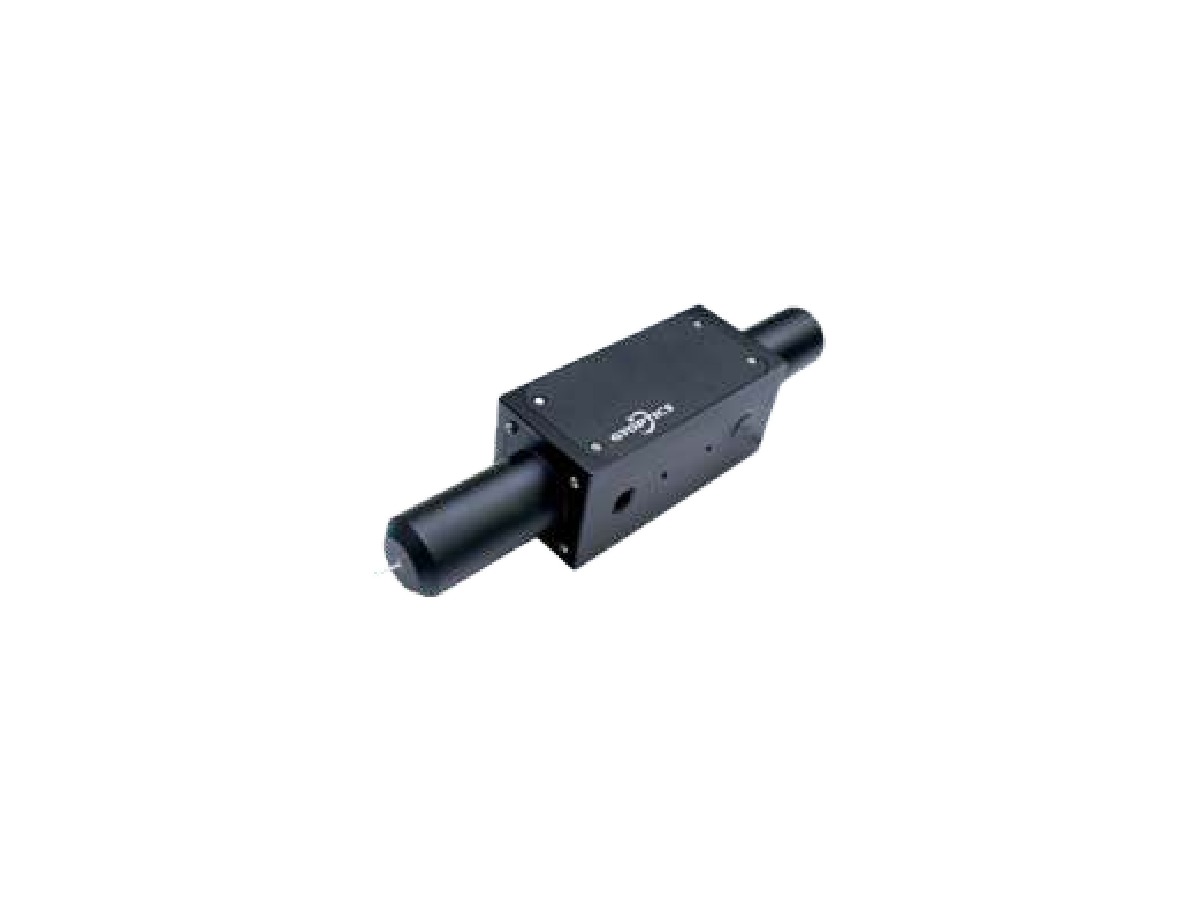

500W In-Line Isolator
500W In-Line Isolator with high isolation degree, low deterioration.
Power500
Wavelength1064
FiberSpecified by ordering info
PackageApplication-specific package
Spec, sample and MOQ review
Export documentation
NDA available on request
Used in
Industrial Laser
Product overview
Designed around the optical requirement.
500W In-Line Isolator with high isolation degree, low deterioration.
Final performance is confirmed against the selected model, fiber, package and application conditions. Please include wavelength, power, polarization, fiber type, package and expected quantity when requesting a quote.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
High isolation degree
Low deterioration
Single mode/multimode fiber optional
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Center Wavelength (λc)
nm
1064
Operating Wavelength Range
nm
λc ± 10
Typ. Peak Isolation
dB
32
M i n . Isolation, λc, 23 ℃
dB
28
Typ. I n s e r t i o n Loss, 23 ℃
dB
0.6
Max. Insertion Loss, 23 ℃ @ 1064 nm
dB
0.7
Max. Insertion Loss, 23 ℃ @ 650 nm
dB
8
Max. Polarization Dependent Loss
dB
0.2
Min. Return Loss (In / Out)
dB
50
Max. Average Optical Power
W
500
Max. Peak Power for ns pulse
kW
50
Fiber Type
Specified by ordering info
Operating Temperature
℃
10 to +50
Storage Temperature
℃
0 to +60
