Isolators

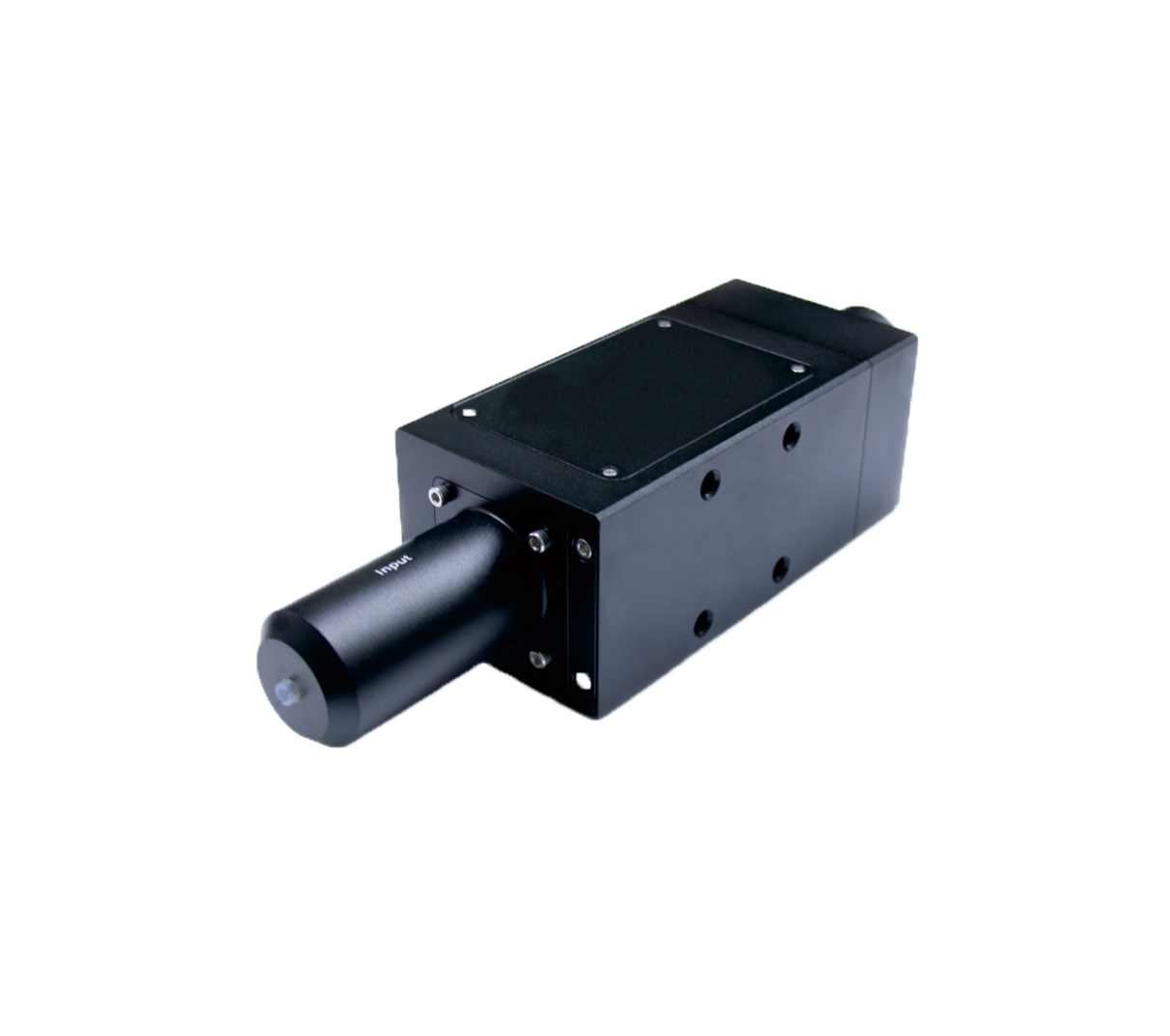

500W In-Line Isolator – Passive Cooling
500W In-Line Isolator – Passive Cooling for application-specific laser systems. Specifications and ordering options are listed below.
Spec, sample and MOQ review
Export documentation
NDA available on request
Used in
Industrial Laser
Product overview
Designed around the optical requirement.
Please share the required wavelength, power, fiber type, package and quantity so the configuration can be confirmed before quotation.
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Center Wavelength (λc)
nm
1064
Operating Wavelength Range
nm
λc ± 10
Typ. Peak Isolation
dB
35
Min. Isolation, λc, 23 °℃
dB
28
Typ. Insertion Loss, 23 °℃
dB
0.4
Max.Insertion Loss, 23 °℃ @ 1064 nm
dB
0.6
Max. Insertion Loss, 23 °℃ @ 650 nm
dB
7
Max.Polarization Dependent Loss
dB
0.2
Min.Return Loss (In / Out)
dB
50
Max.Average Optical Power
W
500
Max. Peak Power for ns pulse
kW
50
Fiber Type
Specified by ordering info
Operating Temperature
℃
10 to+50
Storage Temperature
℃
0 to +60
RFQ
Request this product
Send your target specifications, quantity, application and delivery country. Our team will respond with a suitable configuration.
