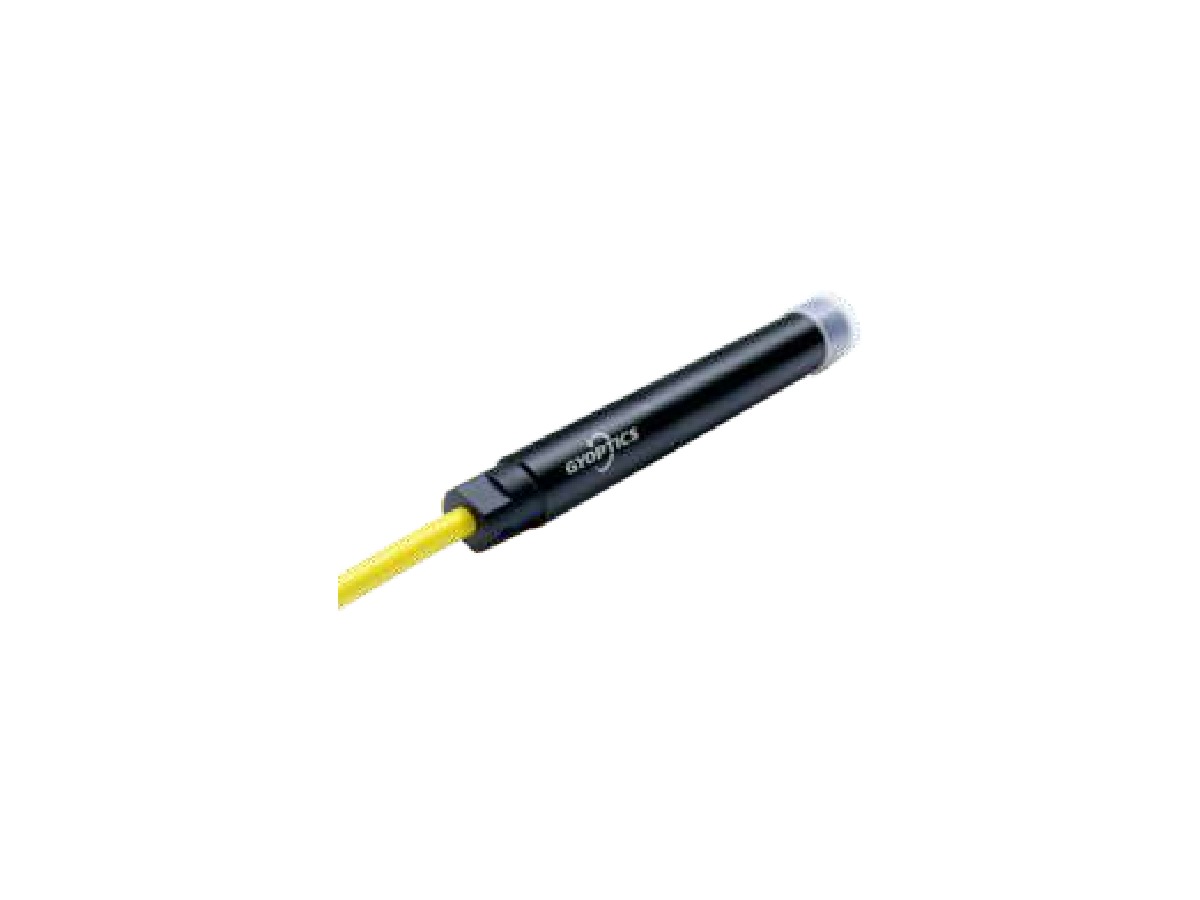

500W High Power Fiber Collimator
500W High Power Fiber Collimator with 3-11 mm beam diameter optional, 100-500 w power optional.
Power500
Wavelength1064
Fiberas order
PackageApplication-specific package
Spec, sample and MOQ review
Export documentation
NDA available on request
Used in
Industrial Laser
Product overview
Designed around the optical requirement.
500W High Power Fiber Collimator with 3-11 mm beam diameter optional, 100-500 w power optional.
Final performance is confirmed against the selected model, fiber, package and application conditions. Please include wavelength, power, polarization, fiber type, package and expected quantity when requesting a quote.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
3-11 mm Beam Diameter optional
100-500 W power optional
Good beam quality, stable and reliable
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Center Wavelength (λc)
nm
1064
Operating Wavelength Range
nm
λc ± 20
Min. Ellipticity
%
95
Max. Insertion Loss, 23 ℃, λc @1064 nm
dB
0.3
Max. Insertion Loss, 23 ℃ @ 650 nm
dB
1.5
Beam Divergence (Far field)
mrad
< 0.5
Min. Return Loss
dB
50
Nominal Output Beam Diameter (1/e²) @M 2=1.5
mm
6 ± 0.5
Max. Average Optical Power (CW)
W
500
Max. Tensile Load
N
5
Fiber Type (input port)
as order
Operating Temperature
℃
5 to +40
Storage Temperature
℃
-40 to +85
Package dimensions
Mechanical outline and mounting reference.
Dimensions shown are extracted from the manufacturer drawing. Final production drawings are confirmed with the quotation.
Unitsmm
Dimension callouts shown59 / 55 / 4 / 277 / 130 / 87 / 70 / 5 / 35 / 0 / 1 mm
Drawing noteDimensions follow the manufacturer drawing. Final production drawing is confirmed per order.
Ordering information
Configure the part number for your requirement.
Use the option codes below when requesting a quotation or confirming a production order.
Wavelength06 - 1064 nm, S - Specify
Handing Power500-500 W,S-Specify
Beam Diameter7 - 7 ± 0.5 mm, 10 - 10 ± 0.5 mm, S - Specify
Jacket Type10 - 10 mm Armoured cable, S - Specify
Jacket Length2 - 2.0 m, 3 - 3.0 m, 4 -4.0 m, 5 - 5.0 m, S - Specify
Fiber Length3 - 3.0 m, 4 - 4.0 m, 5 - 5.0 m, 6 -6.0 m, S - Specify
Fiber Type1 -LMA-GDF-30/250-M, S-Specify
