Fiber Collimators

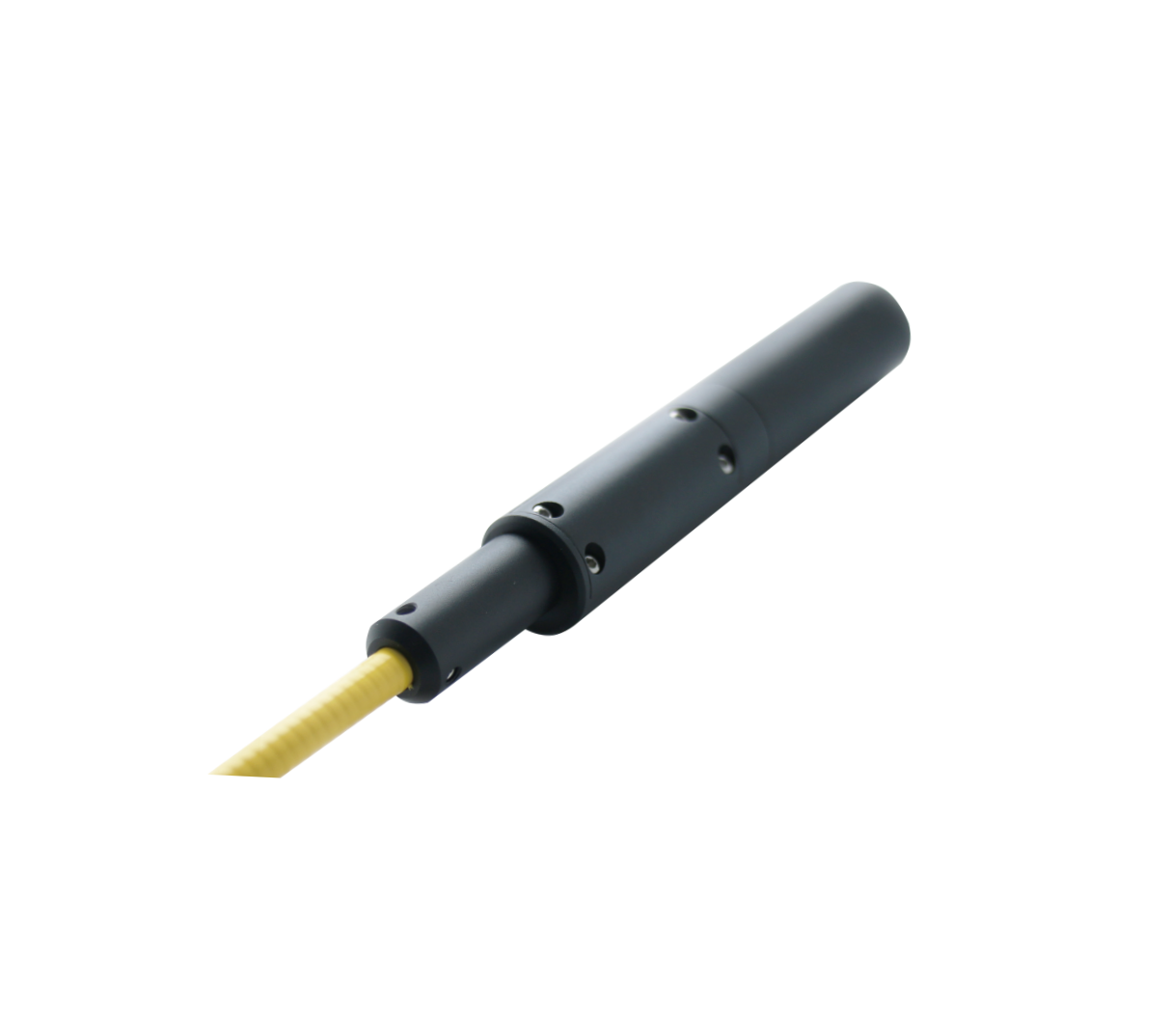

30W Collimator Isolator
30W Collimator Isolator for application-specific laser systems. Specifications and ordering options are listed below.
Spec, sample and MOQ review
Export documentation
NDA available on request
Used in
Industrial Laser
Product overview
Designed around the optical requirement.
Please share the required wavelength, power, fiber type, package and quantity so the configuration can be confirmed before quotation.
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Center Wavelength (lambda c)
nm
1064
Max. Insertion Loss at 23 C, lambda c
dB
0.4
Typ. Peak Isolation
dB
35
Min. Isolation at 30 C
dB
28
Min. Isolation at all temperature
dB
20
Min. Return Loss
dB
50
Nominal Output Beam Diameter (1/e2)
mm
6.5 +/- 0.5
Beam Circularity
%
> 90
M2 Degradation
%
< 10
Max. Average Optical Power
W
30
Max. Pulse Energy
mJ
2
Reverse Power Handling
W
3 W continuous / 10 W (3 min max)
Fiber Type (input port)
Specified by ordering info
Operating Temperature
C
10 to +50
Storage Temperature
C
0 to +60
RFQ
Request this product
Send your target specifications, quantity, application and delivery country. Our team will respond with a suitable configuration.
