Pump Combiners

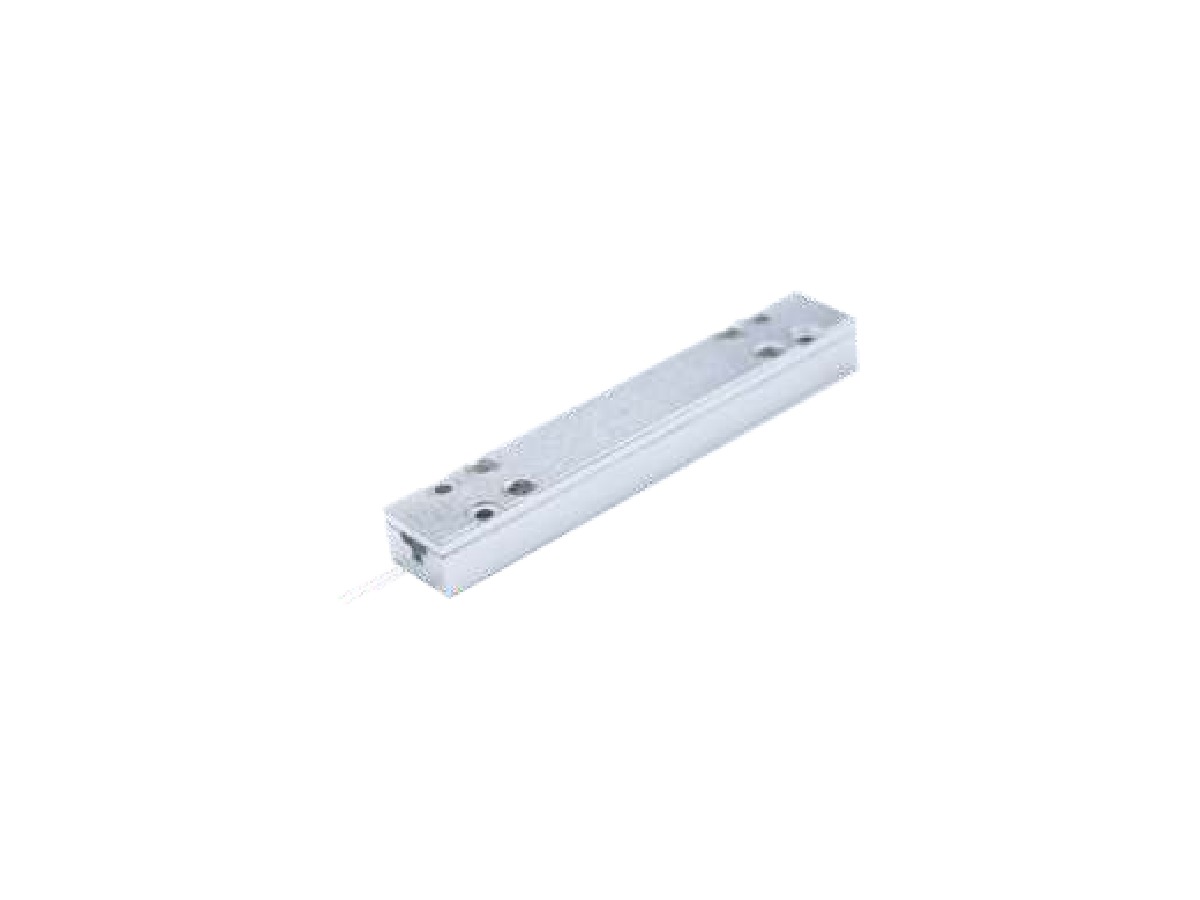

(2+1)x1 Pump Combiner
(2+1)x1 Pump Combiner with high pump efficiency, stable and reliable performance.
Power800/Port
Wavelength800~1000 (Typ. 915 nm)
FiberSpecified by ordering information
PackageApplication-specific package
Spec, sample and MOQ review
Export documentation
NDA available on request
Product overview
Designed around the optical requirement.
(2+1)x1 Pump Combiner with high pump efficiency, stable and reliable performance.
Final performance is confirmed against the selected model, fiber, package and application conditions. Please include wavelength, power, polarization, fiber type, package and expected quantity when requesting a quote.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
High pump efficiency
Stable and reliable performance
Provide customized configurations
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Signal direction
Forward or Backword
Pump Wavelength
nm
800~1000 (Typ. 915 nm)
Signal Wavelength
nm
1030~1080 (Typ.1064 nm)
Max.Insertion Loss (Signal Input to Output)
dB
0.3
Min.Pump Efficiency
%
98
Max.Pump Power Handling
W
800/Port
Input
LMA-GDF-14/250
FiberType Output
LMA-GDF-14/250
Pump
MM-220/242 NA 0.22
Operating Temperature
℃
0 to +75
Storage Temperature
℃
-40 to +85
Package dimensions
Mechanical outline and mounting reference.
Dimensions shown are extracted from the manufacturer drawing. Final production drawings are confirmed with the quotation.
Unitsmm
Dimension callouts shown100 / 15 / 1 mm
Drawing noteDimensions follow the manufacturer drawing. Final production drawing is confirmed per order.
Ordering information
Configure the part number for your requirement.
Use the option codes below when requesting a quotation or confirming a production order.
Pump Wavelength915 - 915 nm, 976 - 976 nm, SSS -Specify
Signal Wavelength1064 - 1064 nm, SSSS - Specify
Fiber Typefor Pump105 - 105/125 NA 0.22 ,135 - 135/155 NA 0.22 ,SSS - Specify
Fiber Type for Input10 -LMA - GDF-10/125, SS -Specify
Fiber Type for Output10 - LMA - GDF - 10/125, 25 -LMA - GDF - 25/250, 30 - LMA - GDF - 30/250, SS - Specify
Fiber Lengthfor Pump1 - 1.0 m, S - Specify
Fiber Length for Input1 - 1.0 m, S - Specify
Fiber Length for Output1 - 1.0 m, S - Specify
RFQ
Request this product
Send your target specifications, quantity, application and delivery country. Our team will respond with a suitable configuration.
