Isolators

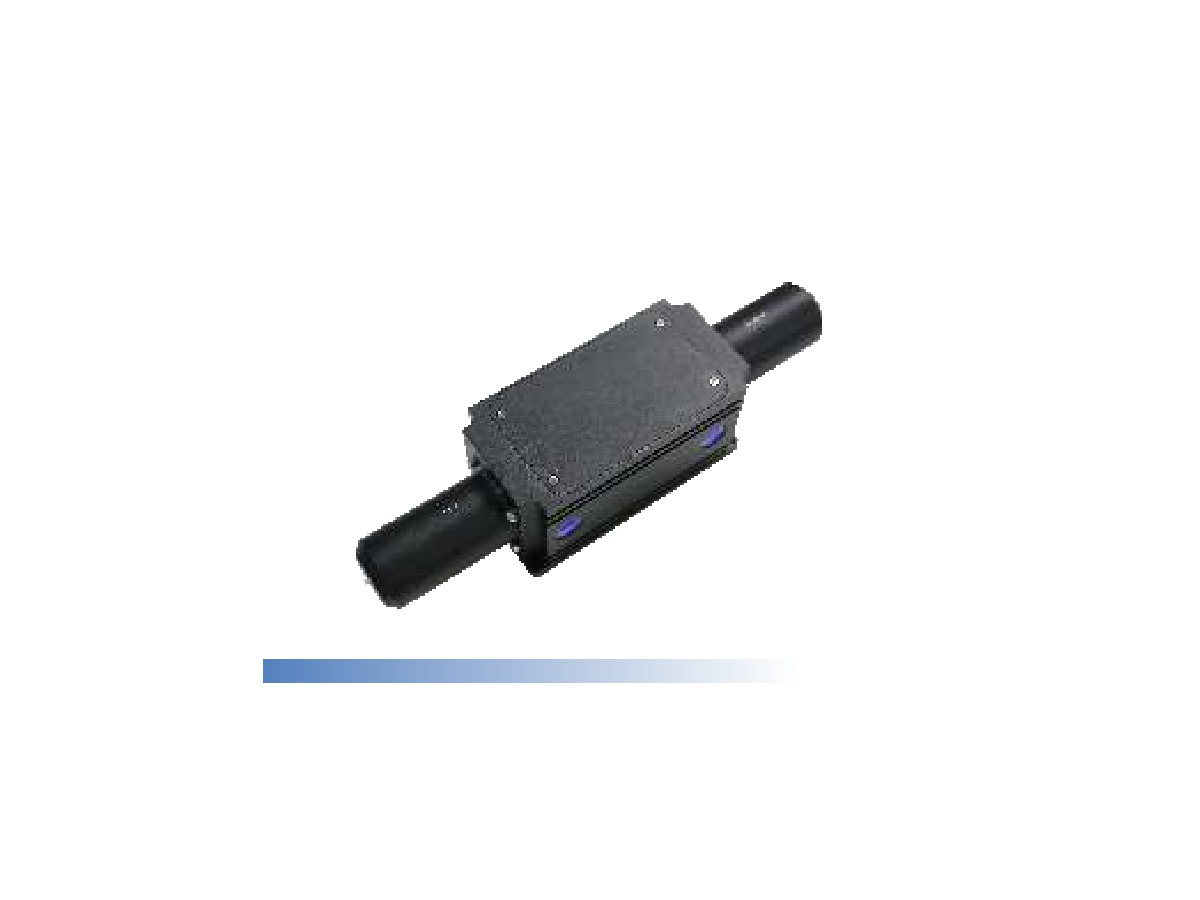

2000W In-Line Isolator
2000W In-Line Isolator with high transmittance, reverse full angle isolation.
Power2000
Wavelength1064
FiberSpecified by ordering info
PackageApplication-specific package
Spec, sample and MOQ review
Export documentation
NDA available on request
Product overview
Designed around the optical requirement.
2000W In-Line Isolator with high transmittance, reverse full angle isolation.
Final performance is confirmed against the selected model, fiber, package and application conditions. Please include wavelength, power, polarization, fiber type, package and expected quantity when requesting a quote.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
High transmittance
Reverse full angle isolation
Suppression of thermal lens effect
Good beam quality
Beam Diameter/Fiber type optional
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Center Wavelength (λc)
nm
1064
Operating Wavelength Range
nm
λc ± 10
Typ. Peak Isolation
dB
35
Min. Isolation, λc, 23 ℃
dB
28
Typ. Insertion Loss, 23 ℃
dB
0.4
Max. Insertion Loss, 23 ℃ @ 1064 nm
dB
0.6
Max. Insertion Loss, 23 ℃ @ 650 nm
dB
7
Max. Polarization Dependent Loss
dB
0.2
Min. Return Loss (In / Out)
dB
50
Max. Average Optical Power
W
2000
Max. Peak Power for ns pulse
kW
50
Fiber Type
Specified by ordering info
Operating Temperature
℃
10 to +50
Storage Temperature
℃
0 to +60
RFQ
Request this product
Send your target specifications, quantity, application and delivery country. Our team will respond with a suitable configuration.
