Isolators

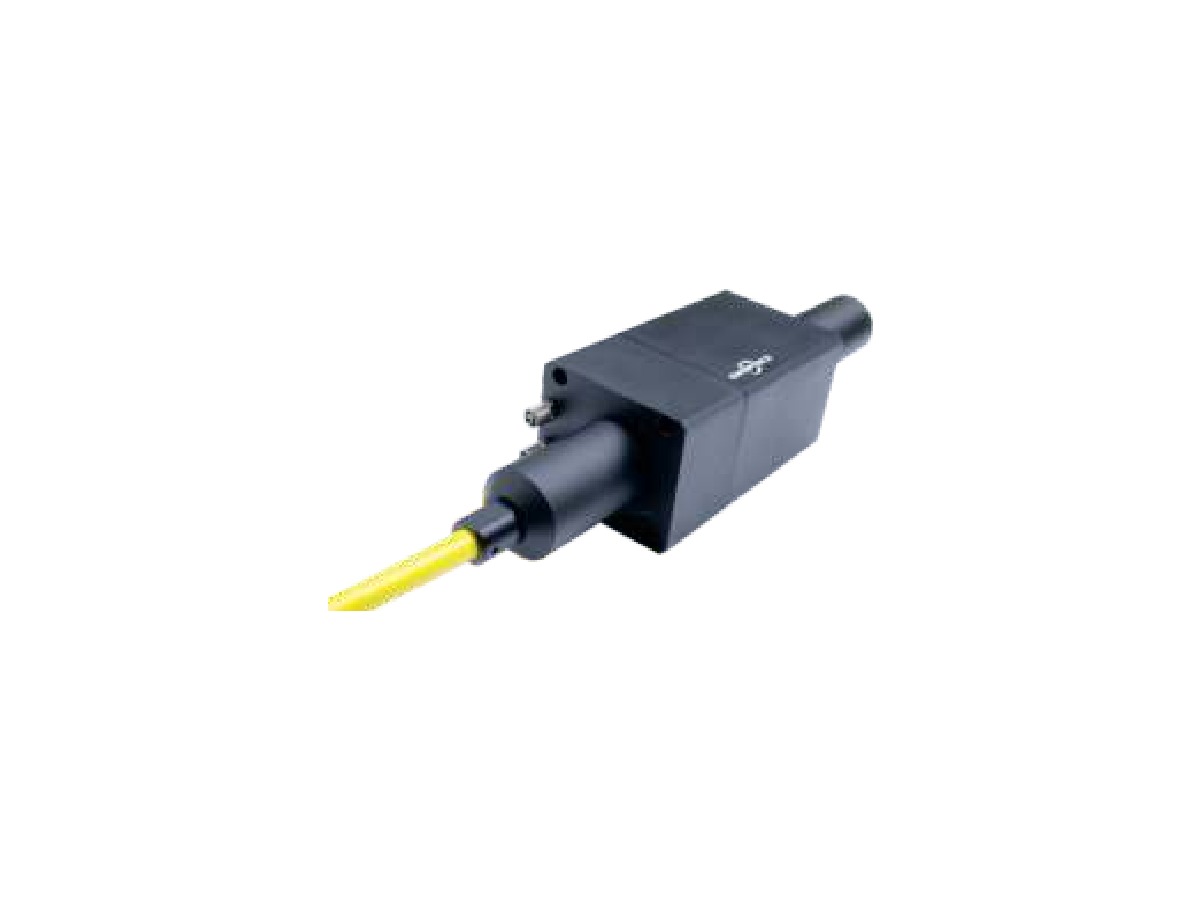

2000W Fiber to Free Space Isolator
2000W Fiber to Free Space Isolator with high transmittance, reverse full angle isolation.
Power2000
Wavelength1064
FiberLMA-GDF-30/250-M fiber or Specify
PackageApplication-specific package
Spec, sample and MOQ review
Export documentation
NDA available on request
Product overview
Designed around the optical requirement.
2000W Fiber to Free Space Isolator with high transmittance, reverse full angle isolation.
Final performance is confirmed against the selected model, fiber, package and application conditions. Please include wavelength, power, polarization, fiber type, package and expected quantity when requesting a quote.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
High transmittance
Reverse full angle isolation
Suppression of thermal lens effect
Good beam quality
Beam Diameter/fiber type optional
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Center Wavelength (λc)
nm
1064
Max. Insertion Loss, 23 ℃, λc @1064 nm
dB
0.4
Max. Insertion Loss, 23 ℃ @ 650 nm
dB
7
Typ. Peak Isolation
dB
35
Min. Isolation at 30 ℃
dB
28
Min. Isolation at all temperature
dB
20
Min. Return Loss
dB
50
Nominal Output Beam Diameter (1/e²)
mm
7 ± 0.5 or 10 ± 0.5
Min. Beam Circularity
%
90
Max. M 2 Degradation
%
10
Nominal Focal Shift of Thermal Lens
mm
≤5.0
Max. Average Optical Power
W
2000
Max. Peak Power for ns pulse
kW
50
Reverse Power Handling
W
5 W Continuous
Reverse Power Handling
W
20 W (3 min max)
Fiber Type (input port)
LMA-GDF-30/250-M fiber or Specify
Operating Temperature
℃
10 to +50
Storage Temperature
℃
0 to +60
