Isolators

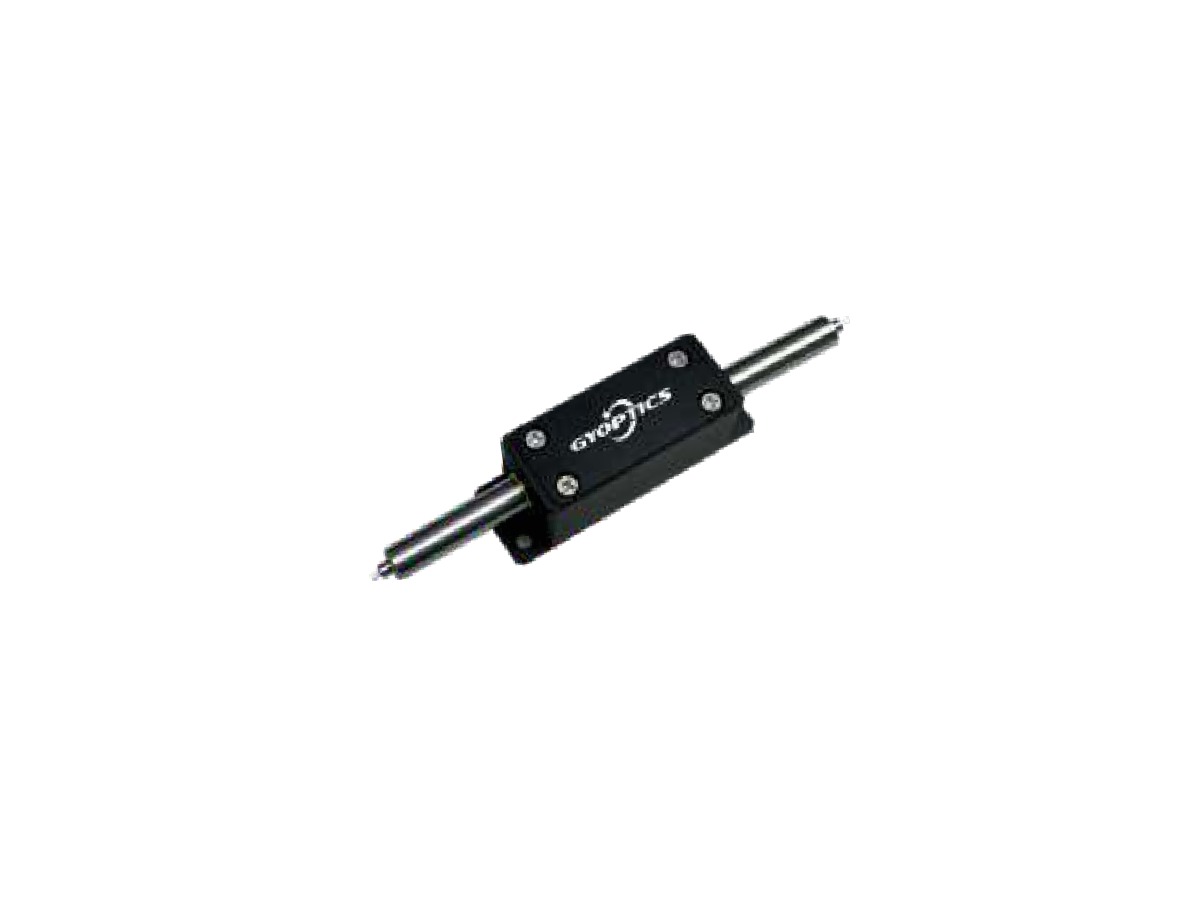

120W In-Line Isolator
120W In-Line Isolator with high power handling, optional dual-stage isolation.
Power120
Wavelength1064
Fiberby ordering info
PackageApplication-specific package
Spec, sample and MOQ review
Export documentation
NDA available on request
Used in
Industrial Laser
Product overview
Designed around the optical requirement.
120W In-Line Isolator with high power handling, optional dual-stage isolation.
Final performance is confirmed against the selected model, fiber, package and application conditions. Please include wavelength, power, polarization, fiber type, package and expected quantity when requesting a quote.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
High power handling
Optional dual-stage isolation
Low insertion loss
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Center Wavelength (λc)
nm
1064
Min. Isolation, λc, 23 ℃
dB
25
Max. Insertion Loss, 23 ℃ @100 W
dB
0.8
M i n . Return Loss (In/Out)
dB
50/50
M a × . A v e r a g e Optical Power
W
120
Max. Peak Power for ns pulse
kW
20
Max. Tensile Load
N
5
Fiber Type
Specified
by ordering info
Operating Temperature
℃
10 to +50
Storage Temperature
℃
0 to +60
RFQ
Request this product
Send your target specifications, quantity, application and delivery country. Our team will respond with a suitable configuration.
