FBG & Raman

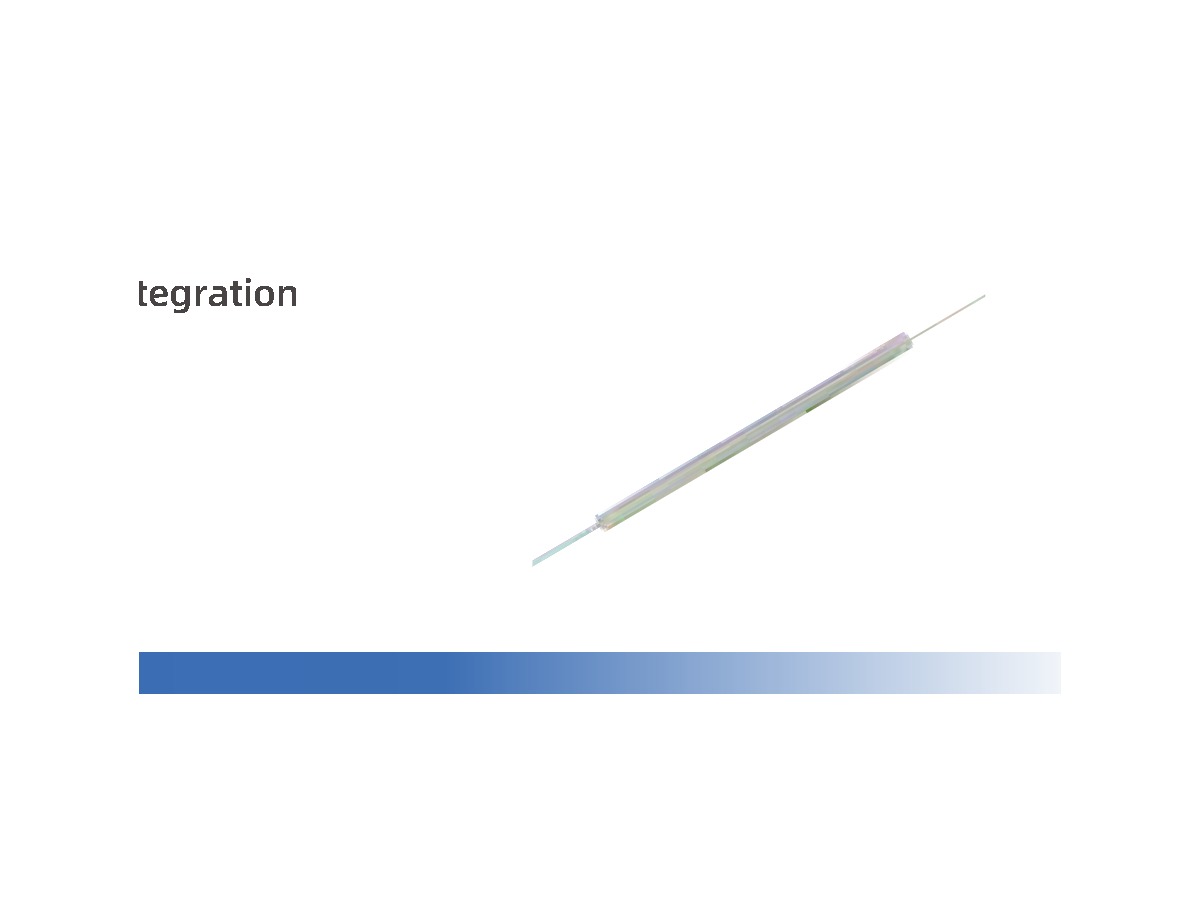

Raman Fiber Grating + CPS Integration
Raman Fiber Grating + CPS Integration with high transmission efficiency, integrated design.
Power1500 / 3000 / 4000
Wavelength1123 / 1135
FiberSpecified by ordering information
PackageΦ 3.5 × L100 glass tube
Spec, sample and MOQ review
Export documentation
NDA available on request
Used in
Industrial Laser
Product overview
Designed around the optical requirement.
Raman Fiber Grating + CPS Integration with high transmission efficiency, integrated design.
Final performance is confirmed against the selected model, fiber, package and application conditions. Please include wavelength, power, polarization, fiber type, package and expected quantity when requesting a quote.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
High transmission efficiency
Integrated design
Wide wavelength range
Fiber type optional
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Port Configuration
1x1
Signal Wavelength
nm
1123 / 1135
3 dB Bandwidth
nm
≥ 20
Max. Insertion Loss
dB
0.2
Fiber Core Dimension
µm
14 / 20 / 25
Max Signal Power Handling
W
1500 / 3000 / 4000
Max Core RSS Power Handling
W
30 / 50 / 100
Max Stripping Power Handling
W
400 / 600 / 800
Pump Power Attenuation
dB
≥ 20
Package Dimension
mm
Φ 3.5 × L100 glass tube
Operating Temperature
C
0 to 75, RH ≤ 55%
Storage Temperature
C
-40 to 85, RH ≤ 55%
RFQ
Request this product
Send your target specifications, quantity, application and delivery country. Our team will respond with a suitable configuration.
