Product overview
Designed around the optical requirement.

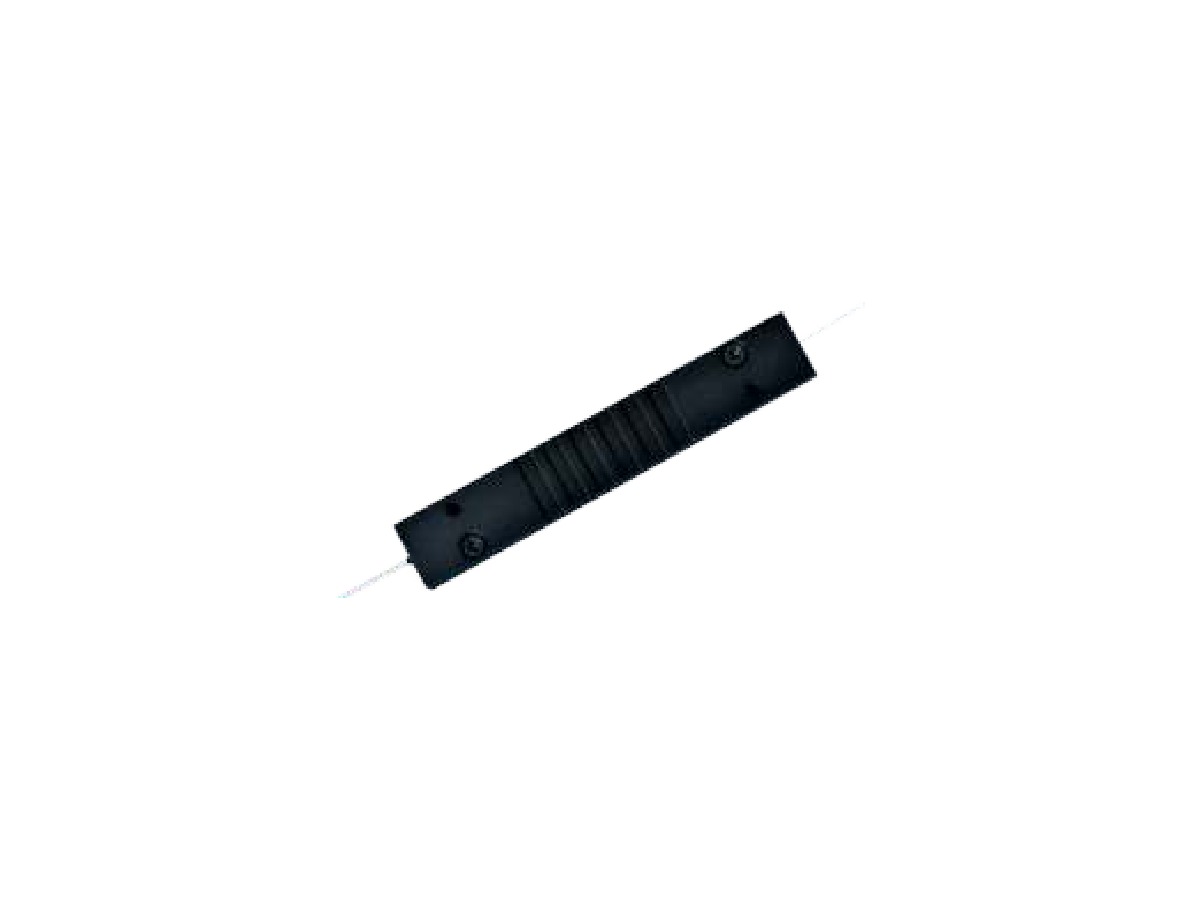

Fiber Grating + Combiner Integration with high transmission efficiency, integrated design.
Final performance is confirmed against the selected model, fiber, package and application conditions. Please include wavelength, power, polarization, fiber type, package and expected quantity when requesting a quote.
Key features
What this product delivers.
Feature set and final configuration are confirmed against the selected model and application.
High transmission efficiency
Integrated design
Wide wavelength range
Fiber type optional
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Pump Wavelength
nm
800 to 1000
Signal Wavelength
nm
650 / 1030 to 1090
Pump Fibers of Combiner
µm
105/125 / 135/155 / 135/155 / 200/220 / 220/242
FBG Fiber Type
µm
14/250 / 20/400
Another Signal Fiber of Combiner
µm
20/130 / X/250 / Y/400, X=20/25/30, Y=20/25
Product Type
(6+1)x1/Nx1 + HR OC + (6+1)x1; (6+1)x1/Nx1 + HR OC; (6+1)x1
Pump Efficiency
%
≥ 97
Signal Insertion Loss
dB
≤ 1.5 / ≤ 0.2 / ≤ 1.5 / ≤ 0.2
Signal Reflectivity
%
> 99.5 / 3 to 20 / > 99.5 / 3 to 20
FBG 3 dB Bandwidth
nm
0.2 to 4
Wavelength Mismatch
nm
≤ 0.2
Max Pump Power Handling
W
2000 / 4500
Max Signal Power Handling
W
1000 / 3000
Package
D5 or D6; recoating only options
Operating Temperature
C
0 to 75
Storage Temperature
C
-40 to +85
