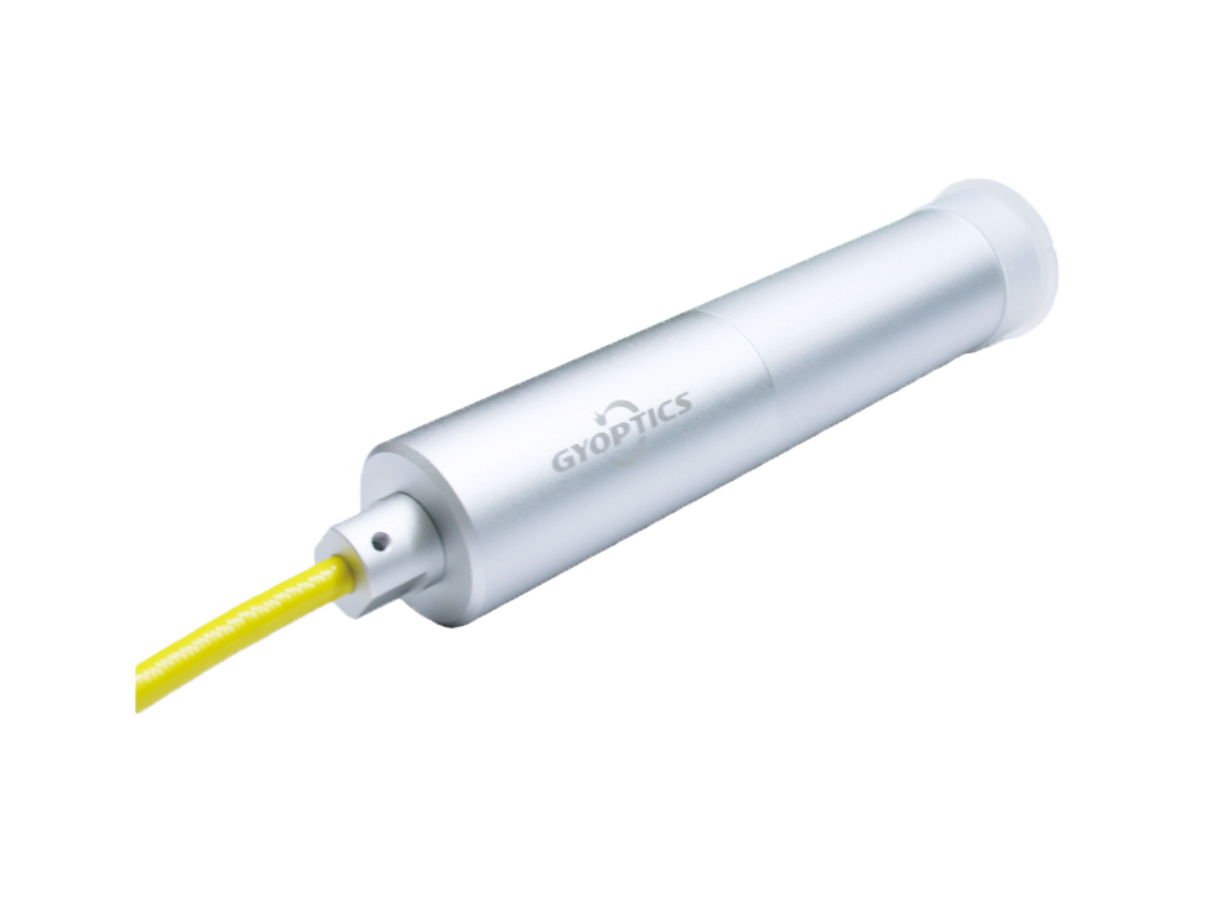

500W QCS
500W QCS for application-specific laser systems. Specifications and ordering options are listed below.
Spec, sample and MOQ review
Export documentation
NDA available on request
Used in
Industrial Laser
Product overview
Designed around the optical requirement.
Please share the required wavelength, power, fiber type, package and quantity so the configuration can be confirmed before quotation.
Specifications
Typical performance
Values below are a starting point. Final parameters are confirmed in the quotation.
Center Wavelength (λc)
nm
1064
Operating Wavelength Range
nm
λc ± 20
Min. Ellipticity
%
92
Beam Pointing Error
deg
<1.0
Beam Divergence (Farfield)
mrad
<0.5
Min. Return Loss
dB
50
Nominal Output Beam Diameter (1/e 2)
mm
7.5± 0.5
Max. Average Optical Power (Cw)
W
500 or Specify
Max. Tensile Load
N
5
Fiber Type (input port)
LMA-GDF-10/130-M or LMA-GDF-14/250-HP-M
Operating Temperature
℃
5 to +40
Storage Temperature
℃
-40 to +85
Package dimensions
Mechanical outline and mounting reference.
Dimensions shown are extracted from the manufacturer drawing. Final production drawings are confirmed with the quotation.
Unitsmm
Dimension callouts shown190 / 176 / 24 / 0 mm
Drawing noteDimensions follow the manufacturer drawing. Final production drawing is confirmed per order.
Ordering information
Configure the part number for your requirement.
Use the option codes below when requesting a quotation or confirming a production order.
Wavelength06-1064 nm, SS-Specify
Beam Diameter(1/e 2)6 - 6 mm, S -Specify
Handling Power500-500 W,SSS -Specify
Jacket Type6 - 6 mm Armoured cable, 9 - 9 mm Armoured cable, 10 - 10 mm Armoured cable, S - Specify
Jacket Length2 - 2.0 m, 3 - 3.0 m, S - Specify
Fiber Length3 - 3.0 m, 4 - 4.0 m, S - Specify
